LEGEND V12 - LEAD GUITAR SPEAKER
|
|
|
LEGEND V12 - LEAD GUITAR SPEAKER |
|
THE EMINENCE LEGEND V12 HAS A NICE FULL SOUND THAT IS TIGHT & SMOOTH W/ EXCELLENT TONAL HARMONIC BALANCE! |
|
|
Free UPS Ground Shipping in the U.S. |
Legend V12 |
|
Legend V12-8 - 8 ohm version
Item Price: $124.99 |
|
|
Legend V12-16 - 16 ohm version
Item Price: $124.99 |
|
|
SPEAKER
MODEL |
LEGEND
V12 |
|
SPECIFICATIONS |
|
| Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8
or 16
ohms |
|
RMS
Power Rating |
120
Watts |
|

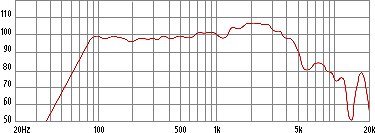

Usable
Frequency Response |
80Hz
- 5kHz |
|
Voice
Coil Diameter |
1.75"
/ 44.5mm |
|
Sensitivity
(1W/1m) |
100.9dB |
|
Magnet
Weight |
38
oz. |
| Shipping Weight | 9.4lbs. / 4.3kg. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.02" / 305.2mm |
| Bolt Circle Diameter | |
| Baffle Cutout Diameter | 10.97" / 278.6mm |
| No.
Of Mounting Holes |
8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Polyamide-Imide Coated Copper |
| Dust Cap | Solid Composition Felt |
| Cone | Paper |
| Surround | Paper Cone Edge |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 89 Hz |
| Impedance
(Re) |
6.37 ohms |
| Coil Inductance (Le) | 0.64mH |
| Electromagnetic Q (Qes) | .83 |
| Mechanical Q (Qms) | 11.98 |
| Total Q (Qts) | .77 |
| Compliance Equivalent Vol. (Vas) | 39.4 Liters / 1.39cu.ft. |
| Voice Coil Overhang (Xmax) | .8mm |
| Surface Area of Cone (Sd) | .05195m2 |
| BL Product (BL) | 11.5 T-M |
| Displacement Volume (Vd) | 41 cc |
| Diaphragm Mass Inc. Airload (Mms) | 31 grams |
| Mechanical Compliance (Cms) | .10mm/N |
| Mechanical Resistance (RMS) | 1.44N*sec/M |
| Efficiency Bandwidth Product (EBP) | 108 |
| Impedance at Resonance (Zmax) | 99 ohms |
|
|
|
