LEGEND 1275 - 12" GUITAR SPEAKER
|
|
|
LEGEND 1275 - 12" GUITAR SPEAKER |
|
THE EMINENCE LEGEND 1275 IS A WARM SOUNDING 12" GUITAR SPEAKER THAT WORKS WELL FOR BLUES & CLASSIC ROCK! |
|
|
|
Item Price: $134.99 Free UPS Ground Shipping in the U.S. |
|
SPEAKER
MODEL |
LEGEND
|
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 305mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
75
Watts |
|
Usable
Frequency Response |
80Hz
- 5.1kHz |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
|
Sensitivity
(1W/1m) |
101.1dB |
|
Magnet
Weight |
34
oz. |
| Net Weight | 7lbs. / 3.18kg. |
| Shipping Weight | 9lbs. / 4.08kg. |
|
MOUNTING INFORMATION |
|
|
|
12.26" / 311.4mm |
| Bolt Circle Diameter |
|
| Baffle Cutout Diameter | 11.06" / 280.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
|
Overall
Depth |
4.44" / 112.8mm |
|
MATERIALS |
|
|
Basket |
Pressed Steel |
| Voice Coil | Polyimide-Imide Coated Copper |
| Dust cap | Zurette |
| Cone | Paper |
| Surround | Paper Cone Edge |
| Core Details | Non Vented |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 111 Hz |
|
Impedance
(Re) |
7.36 ohms |
| Coil Inductance (Le) | 0.55mH |
| Electromagnetic Q (Qes) | 1.09 |
| Mechanical Q (Qms) | 15.07 |
| Total Q (Qts) | 1.02 |
| Compliance Equivalent Vol. (Vas) | 29.61 Liters / 1.05cu.ft. |
| Voice Coil Overhang (Xmax) | 0.47mm |
| Surface Area of Cone (Sd) | .0552m2 |
| BL Product (BL) | 11.95 T-M |
| Displacement Volume (Vd) | 25.9 cc |
| Diaphragm Mass Inc. Airload (Mms) | 30 grams |
| Mechanical Compliance (Cms) | .07mm/N |
| Efficiency Bandwidth Product (EBP) | 101 |
|

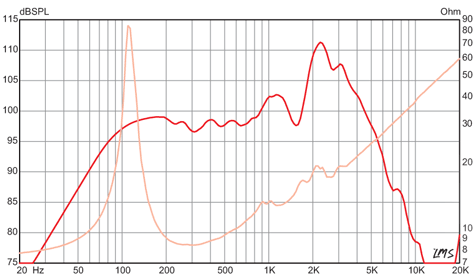

FREQUENCY RESPONSE GRAPH |
|
|
|
|
