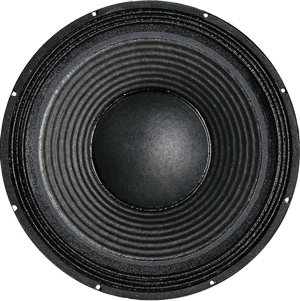

JBL 2267H - 15" DUAL COIL & NEODYMIUM DIFFERENTIAL DRIVE SPEAKER |
|
THIS JBL 2267H 15" SPEAKER DELIVERS A POWERFUL DEEP BASS THAT IS SUPER TIGHT! |
|
|
|
JBL 2267H - 8 ohms
Item Price: $1,379.00 |
|
WOOFER
MODEL |
JBL 2267H |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8 ohms |
| AES Continuous Power (2 Hour) |
1,000
Watts |
| AES Program Power (2 Hour) | 2,000 Watts |
| AES Peak Power (2 Hour) |
4,000
Watts |
|
Frequency
Response |
26Hz
- 400Hz |
|
Sensitivity
(1W/1m) |
99dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
|
Max.
Crossover Frequency |
400Hz |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 41 Hz |
|
Impedance (Re) |
4.8 ohms |
| Coil Inductance (Le) | 2.0mH |
| Mechanical Q (Qms) | 8.3 |
| Electrical Q (Qes) | .44 |
| Total Q (Qts) | .42 |
| Compliance Equivalent Vol. (Vas) | 89 Liters/3.14cu. ft. |
| Voice Coil Overhang (Xmax) | 15.0mm |
| BL Factor | 22.64 N/A |
| Moving Mass (Mms) | 180 Grams |
| Reference Efficiency | 1.4% |
| Effective Surface Area (Sd) | .081 m2 |
|

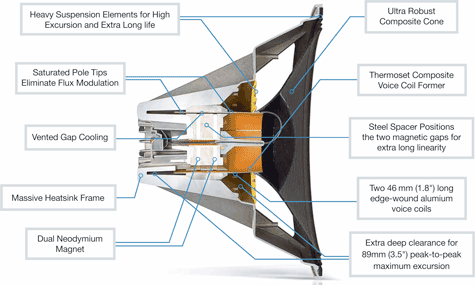

DRAWING |
|
|
|
|
