EMINENCE KAPPALITE 3012LF - 12" WOOFER
|
|
|
EMINENCE KAPPALITE 3012LF - 12" WOOFER |
|
THE EMINENCE KAPPALITE 3012LF DELIVERS A CLEAN BASS & MIDS, HAS A HIGH 9.1MM XMAX & HANDLES 900 WATTS PROGRAM! |
|
|
|
Item Price: $254.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER MODEL |
Kappa Lite 3012LF |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12" / 304.8mm |
|
Impedance |
8 ohms |
|
RMS Power Rating |
450 Watts |
| Program Power Rating | 900 Watts |
|
Frequency Response |
46Hz - 2kHz |
| Sensitivity | 95.5dB SPL |
|
Voice Coil Diameter |
3" / 76.2mm |
|
Magnet Weight |
11 oz. |
| Rec. Enclosure Volume(Sealed) | .8-2.1cu. ft./23-59 Liters |
| Rec. Enclosure Volume(Vented) | 1.3-3.0cu. ft./37-85 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.38" / 314.5mm |
| Bolt Circle Diameter | 11.62" / 295.1mm |
| Baffle Cutout Diameter | 11.06" / 280.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7.11mm |
| Flange Thickness w/ Rear Gasket | 0.56" / 14.22mm |
| Front Gasket Thickness | 0.12" / 3.05mm |
| Flange Thickness w/ Rear & Front Gasket | 0.68" / 17.28mm |
| Overall Depth | 6" / 152.4mm |
| Net Weight | 7.6 lbs. / 3.45kg. |
| Shipping Weight | 9.2 lbs. / 4.17kg. |
| MATERIALS | |
| Cone | Treated Paper |
| Former Material | Kapton |
| Voice Coil | Copper |
| Magnet | Neodymium |
| Vented Motor | Core |
| Basket | Die-Cast Aluminum |
| Surround | Sealed Cloth |
| Dust Cap | Treated Paper |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 37.02 Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | 0.98mH |
| Electromagnetic Q (Qes) | .34 |
| Mechanical Q (Qms) | 6.94 |
| Total Q (Qts) | .32 |
| Moving Mass (Mms) | 72.4 grams |
| Compliance Suspension (Cms) | .26mm/N |
| Compliance Equivalent Vol. (Vas) | 105.42 Liters/3.72cu. ft. |
| Voice Coil Overhang (Xmax) | 9.1mm |
| Surface Area of Cone (Sd) | .05454m2 |
| BL Product (BL) | 16.7 T-M |
| Peak Diaphragm Displacement Volume(Vd) | 496cc |
|

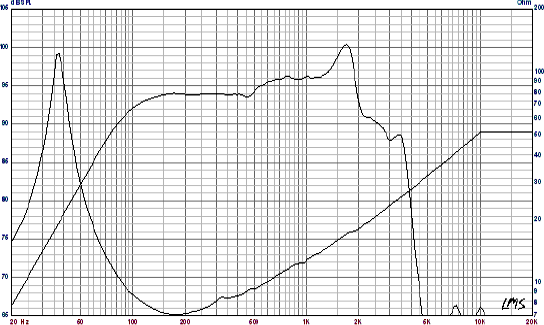

KAPPALITE 3012LF RESPONSE CURVE |
|
|
|
|
