Genuine Eminence
1" PSD2002S SCREW-ON HIGH FREQUENCY COMPRESSION DRIVERS
|
|
|
1" PSD2002S SCREW-ON HIGH FREQUENCY COMPRESSION DRIVERS |
|
|
PSD2002S-8 |
|
8 ohm version
Item Price: $89.99 |
|
|
PSD2002S-16 |
|
|
16 ohm version No Longer Available |
|
PSD-2002S REPLACEMENT DIAPHRAGMS |
|
PSD2002S-8DIA
$54.99
|
|
PSD2002S-16DIA
$44.99
|
|
HF DRIVER MODEL |
PSD2002S |
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
1"
/ 25.4mm |
|
Impedance |
8 or 16 ohms |
|
Frequency
Response
|
1.2kHz
- 20kHz |
|
Power
Rating @ 1.6kHz
|
80
Watts |
|
Minimum
Cut-off Frequency |
1.2kHz |
|
Sensitivity (1mW @ 1m) |
106.1dB |
|
Voice
Coil Diameter |
2"
/ 51mm |
|
Voice
Coil Former |
Kapton |
|
Diaphragm
Material |
Titanium |
|
Resonance
Frequency |
550Hz |
|
Magnet
Weight |
34
oz. |
|
Mounting Type |
Screw On |
| Net Weight | 5.7 lbs. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 5.25" / 133 mm |
| External Thread Size | 1.375" |
| Overall Depth | 2.8" |
|

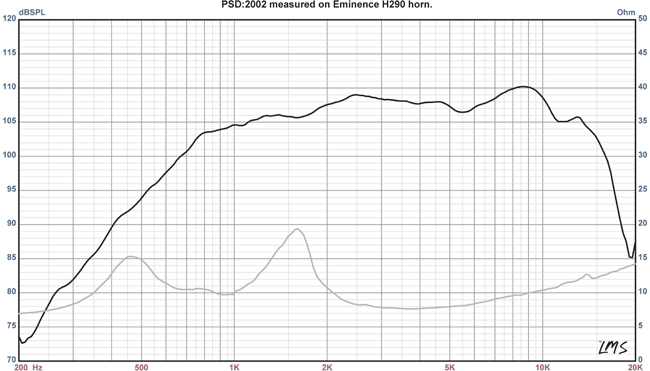

FREQUENCY RESPONSE GRAPH |
|
|
|
|
