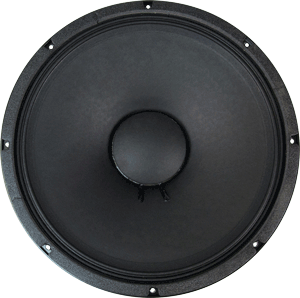

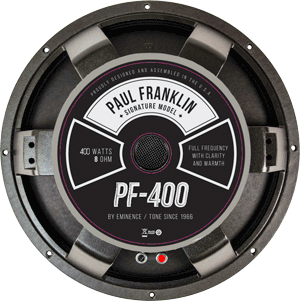

• THE NEW PAUL FRANKLIN SIGNATURE PF-400 IS A 15" GUITAR SPEAKER FROM THE 'SIGNATURE SERIES' GUITAR SPEAKER LINEUP
• FEATURES A LARGE 4" VOICE COIL, WIDE FREQUENCY RANGE FROM 60HZ TO 3.6KHZ & HIGH SENSITIVITY OF 102DB SPL
• NICE BALANCE OF LOWS, MIDS AND HIGHS WITH POWER HANDLING OF 200 WATTS RMS & 400 WATTS PROGRAM
• WORKS WELL WHEN GOING FROM LOW TO HIGH VOLUMES WITH WARMTH & CLARITY
• HAS LOTS OF HEADROOM FOR A CLEAN FULL BODIED SOUND THANKS' TO ITS LARGE MOTOR
• WELL SUITED FOR APPLICATIONS IN OPEN OR CLOSED BACK CABINETS
• MADE BY HAND IN THE USA
• AVAILABLE IN 8 OHMS ONLY

THIS EMINENCE PAUL FRANKLIN  PF-350 12 INCH GUITAR SPEAKER DELIVERS A CLEAR WARM SOUND AT LOW & HIGH VOLUMES WITH EASE!
Free UPS Ground Shipping in the U.S.	PF-400  -  8 ohms Item Price: $269.99
SPEAKER MODEL	PF-400
SPECIFICATIONS
Nominal Basket Diameter	15" / 381mm
Impedance	8 ohms
RMS Power Rating	200 Watts
Peak Power Rating	400 Watts
Usable Frequency Response	60Hz-3.6kHz
Voice Coil Diameter	4" / 102mm
Sensitivity (1W/1m)	102dB
Magnet Weight	109 oz.
MOUNTING INFORMATION
Overall Diameter	15.28" / 388.1mm
Bolt Circle Diameter	14.57" / 370.1mm
Baffle Cutout Diameter	14.06" / 357.1mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.26" / 6.6mm
Overall Depth	6" / 152.4mm
Net Weight	22.6lbs. / 10.25 kg.
Shipping Weight	24.8lbs. / 11.25 kg.
MATERIALS
Basket	Die-Cast Aluminum
Voice Coil	Edgewound Aluminum
Coil Former Material	Polyimide
Dust Cap	Paper
Cone	Paper
Core Details	Vented
Surround	Cloth
Magnet	Ferrite
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	58 Hz
Impedance (Re)	7.45 ohms
Coil Inductance (Le)	0.43mH
Electromagnetic Q (Qes)	0.48
Mechanical Q (Qms)	6.37
Total Q (Qts)	.5
Compliance Equiv. Vol. (Vas)	120.85Liters / 4.27 cu. ft.
BL Product (BL)	18.33 T-M
Voice Coil Overhang (Xmax)	.79mm
Diaphragm Mass (Mms)	67 Grams
Surface Area of Cone (Sd)	.08896m2
FREQUENCY RESPONSE GRAPH
