EMINENCE KAPPA PRO-15A - 15" SPEAKER
|
|
|
EMINENCE KAPPA PRO-15A - 15" SPEAKER |
|
THE EMINENCE KAPPA PRO-15A HAS A HIGH EFFICIENCY OF 101DB SPL 15" 500 WATT RMS WOOFER IN A CAST FRAME! |
|
|
|
Item Price: $184.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
KAPPA PRO-15A |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15"
/ 381mm |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
500
Watts |
| Program Power Rating | 1,000 Watts |
|
Frequency
Response |
46Hz
- 4kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
3"
/ 76.2mm |
|
Max.
Crossover Frequency |
4kHz |
| Rec. Enclosure Vol. (Vented) | 54-184 Liters / 1.9-6.5 cu. ft. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 15.32" / 389mm |
| Bolt Circle Diameter | 14.562" / 369.9mm |
| Baffle Cutout Diameter | 14" / 355.5 |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.275" / 7mm |
| Overall Depth | 6.57" / 167mm |
| Magnet Weight | 80 oz. |
| Shipping Weight | 20 lbs. / 9.1kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
47 Hz |
| Impedance (Re) | 5.23 ohms |
| Coil Inductance (Le) | 1.01mH |
| Electromagnetic Q (Qes) | .40 |
| Mechanical Q (Qms) | 8.01 |
| Total Q (Qts) | .38 |
| Compliance Equivalent Vol. (Vas) | 167.7 Liters/5.92cu. ft. |
| Voice Coil Overhang (Xmax) | 3.2mm |
| BL Factor (BL) | 16.6 T-M |
| Surface Area of Cone (Sd) | .08563 m2 |
|

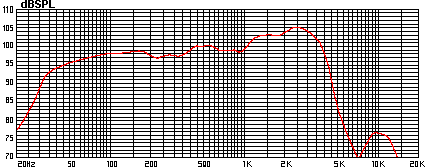

KAPPA PRO-15A RESPONSE CURVE |
|
|
|
|
