• THE NEW JOSH SMITH JS-1250 IS A 12" GUITAR SPEAKER FROM THE 'SIGNATURE SERIES' GUITAR SPEAKER LINEUP
• FEATURES A WIDE FREQUENCY RANGE FROM 80HZ TO 5.2KHZ & HIGH SENSITIVITY OF 101.4DB SPL
• POWER HANDLING OF 50 WATTS RMS & 100 WATTS PROGRAM
• HAS THE LOWS OF THE TONESPOTTER, THE CLEAN HIGHS OF THE WIZARD & THE GRIT AND SPARKLE OF THE RED FANG
• WELL SUITED FOR APPLICATIONS IN OPEN OR CLOSED BACK CABINETS
• MADE BY HAND IN THE USA
• AVAILABLE IN 8 OHMS ONLY

THIS EMINENCE JOSH SMITH  JS-1250 12 INCH GUITAR SPEAKER DELIVERS SPARKLY CLEAN HIGHS, GOOD LOWS AND A GRIT SOUND!
Free UPS Ground Shipping in the U.S.	JS-1250  -  8 ohms Item Price: $144.99
SPEAKER MODEL	JS-1250
SPECIFICATIONS
Nominal Basket Diameter	12" / 305mm
Impedance	8 ohms
RMS Power Rating	50 Watts
Peak Power Rating	100 Watts
Usable Frequency Response	80Hz-5.2kHz
Voice Coil Diameter	1.75" / 44.5mm
Sensitivity (1W/1m)	101.4dB
Magnet Weight	38 oz.
MOUNTING INFORMATION
Overall Diameter	12.17" / 309.12mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter	11.13" / 282.7mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.24" / 6.1mm
Overall Depth	5.23" / 138.2mm
Net Weight	8.0lbs. / 3.95 kg.
Shipping Weight	9.8lbs. / 4.45 kg.
MATERIALS
Basket	Stamped Steel
Voice Coil	Copper
Coil Former Material	Nomex
Dust Cap	Zurette
Cone	Paper
Core Details	Vented
Surround	Cloth
Magnet	Ferrite
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	92 Hz
Impedance (Re)	6.42 ohms
Coil Inductance (Le)	0.5mH
Electromagnetic Q (Qes)	0.63
Mechanical Q (Qms)	15.69
Total Q (Qts)	.61
Compliance Equiv. Vol. (Vas)	41.21Liters / 1.46 cu. ft.
BL Product (BL)	12.91 T-M
Voice Coil Overhang (Xmax)	.79mm
Diaphragm Mass (Mms)	28 Grams
Surface Area of Cone (Sd)	.05195m2

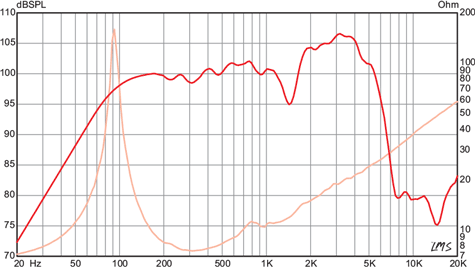

FREQUENCY RESPONSE GRAPH
