GA10-SC59 - 10" ALNICO GUITAR SPEAKER
|
|
|
GA10-SC59 - 10" ALNICO GUITAR SPEAKER |
|
THE EMINENCE GA10-SC59 IS CLASSIC 10" ALNICO SPEAKER W/ 20 WATTS RMS POWER HANDLING! |
|
|
Free UPS Ground Shipping in the U.S. |
GA10-SC59 |
|
8 ohms
Item Price: $159.99 |
|
|
SPEAKER MODEL |
GA10-SC59 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10.1"
/ 256mm |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
20 Watts |
|
Usable
Frequency Response |
100Hz
- 5.3kHz |
|
Voice
Coil Diameter |
1"
/ 25mm |
|
Sensitivity
(1W/1m) |
97dB |
|
Magnet
Weight |
6 oz. |
| Gap Height | .25" / 6.35mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.11" / 256.8mm |
| Bolt Circle Diameter | 9.6" / 243.8mm |
| Baffle Cutout Diameter | 9.13" / 231.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.22" / 5.6mm |
| Overall Depth | 4.8" / 121.9mm |
| Net Weight | 2.9lbs. / 1.32kg. |
| Shipping Weight | 4lbs. / 1.81kg |
|
MATERIALS |
|
| Basket |
Pressed Steel |
| Voice Coil | Copper |
| Dust Cap | Solid Composition Felt |
| Cone | Full Molded Paper |
| Surround | Paper Cone Edge |
| Core | Non Vented |
| Magnet | Alnico |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 102 Hz |
| Impedance (Re) | 7.58 ohms |
| Coil Inductance (Le) | 0.44mH |
| Electromagnetic Q (Qes) | 1.67 |
| Mechanical Q (Qms) | 19.66 |
| Total Q (Qts) | 1.54 |
| Compliance Equivalent Vol. (Vas) | 27.91 Liters / .99cu.ft. |
| Voice Coil Overhang (Xmax) | 1.59mm |
| Surface area of Cone (Sd) | .03661m2 |
| BL Product (BL) | 6.94 T-M |
| Displacement Volume (Vd) | 58.21 cc |
| Diaphragm Mass Inc. Airload (Mms) | 17 grams |
| Mechanical Compliance (Cms) | .15mm/N |
| Efficiency Bandwidth Product (EBP) | 61 |

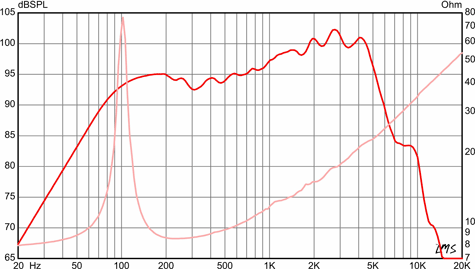

| FREQUENCY RESPONSE GRAPH | |
 |
|
