Genuine Eminence
EMINENCE DELTA LITE II 2515 -15" NEODYMIUM SPEAKER
|
|
|
EMINENCE DELTA LITE II 2515 -15" NEODYMIUM SPEAKER |
|
THE EMINENCE DELTALITE II 2515 15" DELIVERS A CRISP & TIGHT SOUND WITH 4.8MM XMAX FOR A CLEAN BASS SOUND! |
|
|
|
Item Price: $204.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
Delta Lite II 2515 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15"
/ 381mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
300
Watts |
|
Frequency
Response |
54Hz
- 3.7kHz |
| Sensitivity | 99.2dB SPL |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Rec. Enclosure Volume(Sealed) |
1.5-1.7cu. ft./42.5-48 Liters |
| Rec. Enclosure Volume(Vented) | 1.8-4.2cu. ft./51-119 Liters |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.32" / 389mm |
| Bolt Circle Diameter | 14.56" / 369.9mm |
| Baffle Cutout Diameter | 14" / 355.6mm |
|
No. Of Mounting Holes |
8 |
| Mounting Hole Diameter |
0.275" / 7mm |
| Overall Depth |
6.81" / 173mm |
| Net Weight | 5.7lbs./ 2.6kg. |
| Shipping Weight | 7.9lbs./ 3.6kg. |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
| Basket | Die-Cast Aluminum |
| Surround | Cloth |
| Dust Cap | Solid Composition Paper |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 42 Hz |
|
Impedance
(Re) |
5.29 ohms |
| Coil Inductance (Le) | 1.15mH |
| Electromagnetic Q (Qes) | .41 |
| Mechanical Q (Qms) | 4.56 |
| Total Q (Qts) | .38 |
| Compliance Equiv. Vol. (Vas) | 204 Liters/7.2cu. ft. |
| Voice Coil Overhang (Xmax) | 4.8mm |
| Surface Area of Cone (Sd) | .08563m2 |
| BL Product (BL) | 15.7 T-M |
| Peak Dia. Displacement Volume(Vd) | 411cc |
|

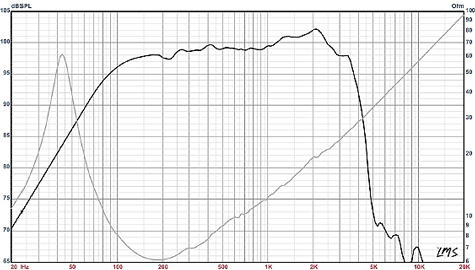

DELTALITE II 2515 RESPONSE CURVE |
|
|
|
|
