EMINENCE DELTA-12LFC - 12" WOOFER
|
|
|
EMINENCE DELTA-12LFC - 12" WOOFER |
|
THE EMINENCE DELTA-12LFC IS A 4 OHM 12" WOOFER WITH A CLEAN BASS DOWN TO 44HZ WITH GOOD MIDS! |
|
|
4 OHMS |
Item Price: $139.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
DELTA-12LFC |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
4 ohms |
|
RMS
Power Rating |
500
Watts |
| Program Power Handling | 1,000 Watts |
|
Frequency
Response |
44Hz
- 3kHz |
|
Sensitivity
(1W/1m) |
93.1dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Max.
Crossover Frequency |
3kHz |
| Rec. Enclosure Volume(Sealed) | .7-1.0cu. ft./19.8-28 Liters |
| Rec. Enclosure Volume(Vented) | .9-3.6cu. ft./25.5-102 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.03" / 305.6mm |
| Bolt Circle Diameter | 11.59" / 294.4mm |
| Baffle Cutout Diameter | 11.07" / 281.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.35" / 1365.9mm |
| Magnet Weight | 56 oz. |
| Net Weight | 11.8 lbs. / 5.35 kg. |
| Shipping Weight | 14 lbs. / 6.35kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 52 Hz |
| Impedance (Re) | 3.2 ohms |
| Coil Inductance (Le) | .94mH |
| Electromagnetic Q (Qes) | .47 |
| Mechanical Q (Qms) | 8.21 |
| Total Q (Qts) | .44 |
| Compliance Equiv. Vol. (Vas) | 63.7 Liters/2.3cu. ft. |
| Voice Coil Overhang (Xmax) | 4.8mm |
| Diaphragm Mass (Mms) | 53 Grams |
| BL Factor (BL) | 10.9 T-M |
| Surface Area Of Cone (Sd) | .05195m2 |
|

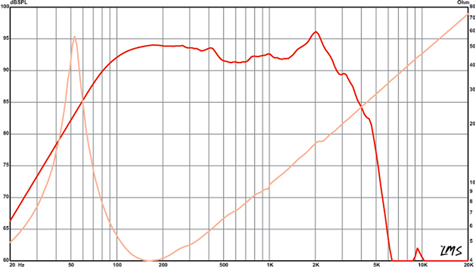

DELTA-12LFC FREQUENCY RESPONSE CURVE |
|
 |
|
