EMINENCE DELTA-12A - 12" SPEAKER
|
|
|
EMINENCE DELTA-12A - 12" SPEAKER |
|
THE EMINENCE DELTA-12A HAS GOOD BASS WITH VERY LOUD MIDS & HANDLES 400 WATTS RMS! |
|
|
|
Item Price: $124.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
DELTA-12A |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
400
Watts |
| Program Power Handling | 800 Watts |
|
Frequency
Response |
54Hz
- 5kHz |
|
Sensitivity
(1W/1m) |
98.3dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Max.
Crossover Frequency |
5kHz |
| Rec. Enclosure Volume(Vented) | .9-3.0cu. ft./25.5-85 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.03" / 305.6mm |
| Bolt Circle Diameter | 11.59" / 294.4mm |
| Baffle Cutout Diameter | 11.07" / 281.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.35" / 135.9mm |
| Magnet Weight | 56 oz. |
| Net Weight | 11.4 lbs. / 5.17 kg. |
| Shipping Weight | 13.5 lbs. / 6.12 kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 55 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | 0.74mH |
| Electromagnetic Q (Qes) | .46 |
| Mechanical Q (Qms) | 5.27 |
| Total Q (Qts) | .43 |
| Compliance Equiv. Vol. (Vas) | 81.3 Liters/2.87cu. ft. |
| Voice Coil Overhang (Xmax) | 2.4mm |
| Diaphragm Mass (Mms) | 39 Grams |
| BL Factor (BL) | 13.5 T-M |
| Surface Area Of Cone (Sd) | .05195m2 |
|

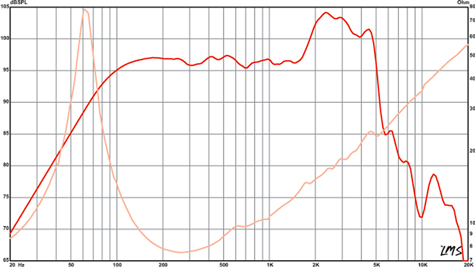

DELTA-12A FREQUENCY RESPONSE CURVE |
|
 |
|
