EMINENCE BETA-12A - 12" SPEAKER
|
|
|
EMINENCE BETA-12A - 12" SPEAKER |
|
THE EMINENCE BETA-12A HAS A GOOD COMBINATION OF CLEAN MIDS AND WARM BASS! |
|
|
|
Item Price: $119.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
BETA-12 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" / 304.8mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
250 Watts |
| Progra Power Handling | 500 Watts |
|
Frequency
Response |
43Hz - 3.8kHz |
|
Sensitivity
(1W/1m) |
98dB |
| Voice Coil Diameter | 2" / 50.8mm |
|
Max.
Crossover Frequency |
3.8kHz |
| Rec. Enclosure Volume(Sealed) | .9-1.25cu. ft./25.5-35.4 Liters |
| Rec. Enclosure Volume(Vented) | 1.3-4.9cu. ft./36.8-139 Liters |
|
Mounting Information |
|
| Overall Diameter | 12.03" / 305.2mm |
| Bolt Circle Diameter | 11.59" / 294.4mm |
| Baffle Cutout Diameter | 11.07" / 281.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
|
Overall
Depth |
4.57" / 116.1mm |
| Magnet Weight | 38 oz. |
| Net Weight | 7.5 lbs. / 3.4kg. |
| Shipping Weight | 9.7 lbs. / 4.4kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 47 Hz |
|
Impedance
(Re) |
5 ohms |
| Coil Inductance (Le) | 0.64mH |
| Electromagnetic Q (Qes) | .5 |
| Mechanical Q (Qms) |
6.0 |
| Total Q (Qts) | .46 |
| Compliance Equivalent Vol. (Vas) | 120.1 Liters/4.2cu. ft |
| Voice Coil Overhang (Xmax) | 4.4mm |
| Diaphragm Mass (Mms) | 40 Grams |
| BL Factor (BL) | 10.8 T-M |
| Surface area of Cone (Sd) | .05324m2 |
|

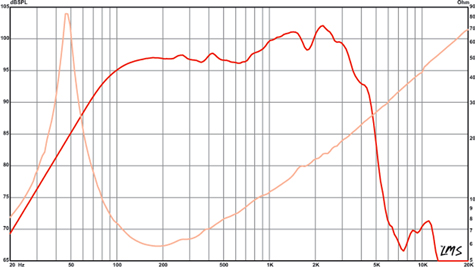

BETA-12A FREQUENCY RESPONSE CURVE |
|
|
|
|
