Genuine Eminence
12" GUITAR SPEAKER
|
|
|
|
|
12" GUITAR SPEAKER |
|
THE EMINENCE CANNABIS REX 12 INCH GUITAR SPEAKER HAS A HEMP CONE & DELIVERS A FULL BODIED SWEET SOUND W/ JUST ENOUGH BITE & SPARKLE! |
|
|
Free UPS Ground Shipping in the U.S. |
Cannabis Rex-8 - 8 ohms
Item Price: $124.99 |
|
Cannabis Rex-16 - 16 ohms
Item Price: $124.99 |
|
|
WOOFER
MODEL |
CANNABIS REX |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 305mm |
|
Impedance |
8
or 16 ohms
|
| RMS Power Rating | 50 Watts |
| Peak Power Rating | 100 Watts |

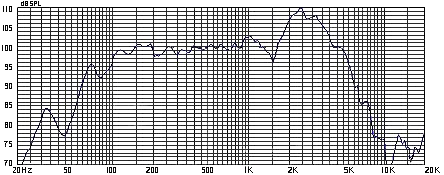

| Usable Frequency Response | 70Hz - 5.0kHz |
|
Voice Coil Diameter |
1.75"
/ 44.5mm |
|
Sensitivity
(1W/1m) |
102dB |
|
Magnet
Weight |
38
oz. |
| Shipping Weight | 10lbs. /4.54kg. |
|
MOUNTING INFORMATION |
|
|
|
12.02" / 305.2mm |
| Bolt Circle Diameter |
11.63 |
| Baffle Cutout Diameter | 10.97" / 278.6mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.1" / 129.5mm |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Kapton |
| Dust Cap | Zurette |
| Cone | Hemp |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 96 Hz |
| Impedance (Re) | 6.56 ohms |
| Coil Inductance (Le) | 0.44mH |
| Electromagnetic Q (Qes) | 0.69 |
| Mechanical Q (Qms) | 9.28 |
| Total Q (Qts) | 0.64 |
| Compliance Equiv. Vol. (Vas) | 50 Liters / 1.8 cu. ft. |
| BL Product (BL) | 11.8 T-M |
| Voice Coil Overhang (Xmax) | 0.79mm |
| Surface area of Cone (Sd) | .05586m2 |
|
|
|
