B & C  PROFESSIONAL COMPONENTS

ME45 - 1" HORN

THIS 1" HORN WORKS WELL FOR SMALL PA SYSTEMS OR STAGE MONITORS!

B&C ME45

ME45

Item Price: $61.03

HORN MODEL

ME45

SPECIFICATIONS

Throat Diameter

1" / 25mm

Coverage: Horizontal

9

Coverage: Vertical

4

Cutoff Frequency 1.0kHz
Type Bolt-on

Material

Cast Aluminum

MOUNTING INFORMATION

Dimensions 12.2"W x 5.6"H x 4.9"D
Mounting Holes (2)M6 holes on 180°- 3" Diameter
Baffle Cutout Dimensions 10.2"W x 4.3"H
Net Weight .9 lbs./ .4kg.

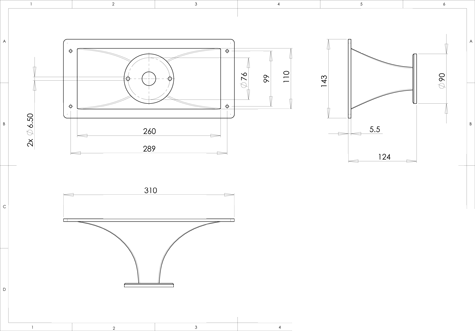

DRAWING
B&C ME45 Horn Drawing
HORIZONTAL DIRECTIVITY
B&C ME45 Horizontal
