ME20 - 1" HORN

THIS 1" HORN WORKS WELL FOR SMALL PA SYSTEMS OR STAGE MONITORS!

B&C ME20 horn

ME20



Item Price: $23.61

HORN MODEL

ME20

SPECIFICATIONS

Throat Diameter

1" / 25mm

Coverage: Horizontal

9

Coverage: Vertical

60°

Cutoff Frequency 1.5kHz
Type Bolt-on

Material

Cast Aluminum

MOUNTING INFORMATION

Dimensions 5.7"W x 5.7"H x 3.54"D
Mounting Holes (2)M6 holes on 180°- 3" Dia.
Baffle Cutout Dimensions 4.6"W x 4.4"H
Net Weight 1.0 lbs./ .45kg.

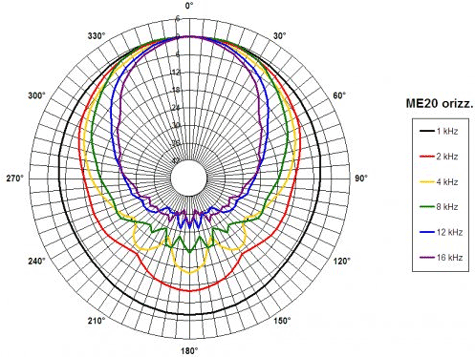

HORIZONTAL FREQUENCY RESPONSE

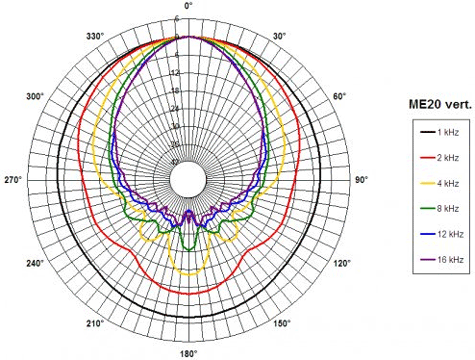

VERTICAL FREQUENCY RESPONSE

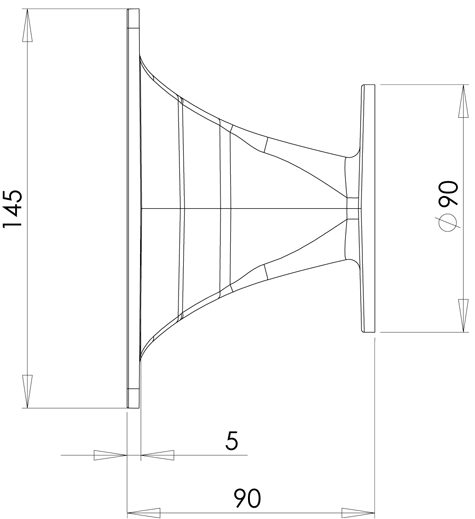

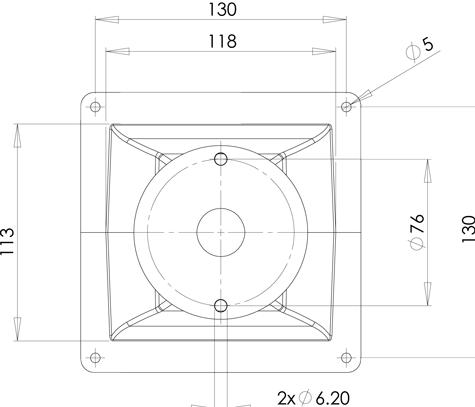

DRAWING
