THE B&C 18PZB100 HANDLES HIGH POWER OF 1,400 WATTS FOR QUALITY SUBWOOFER SPEAKER SYSTEMS! |
|
|
|
18PZB100 |
|
Item Price: $357.24 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

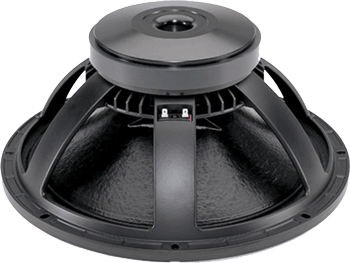

18PZB100 - 18" HIGH POWER WOOFER |
|
THE B&C 18PZB100 HANDLES HIGH POWER OF 1,400 WATTS FOR QUALITY SUBWOOFER SPEAKER SYSTEMS! |
|
|
|
18PZB100 |
|
Item Price: $357.24 |
|
|
SPEAKER
MODEL |
18PZB100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
700
Watts |
| Program Power | 1,400 Watts |
|
Frequency
Response |
40Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Depth | .83" / 21mm |
| Magnetic Gap Depth | .3125" / 8mm |
| Flux Density | 1.15T |
|
CABINET SIZE & TUNING |
|
| Cabinet Size | 5.65 cu. ft. / 160 Liters |
| Recommended Tuning | 39Hz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
18" / 460mm |
| Bolt Circle Diameter | 17.3" / 440mm |
| Baffle Cutout Diameter | 16.6" / 422mm |
| Depth | 7.95" / 202mm |
| Flange & Gasket Thickness | .625" / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 26.6 lbs./ 12.1 kg. |
| Shipping Weight | 30.42 lbs./ 13.8 kg. |
|
MATERIALS |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Cone Shape | Exponential |
| Surround | Treated Cloth |
| Surround Shape | Double Roll |
| Voice Coil | Copper |
| Former | Glass Fibre |
| Pole Design | T-Pole |
| Spider | Double Silicone |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
30 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor(Qes) | .25 |
| Mechanical Q (Qms) | 8.8 |
| Total Q (Qts) | .24 |
| Compliance Equiv. Vol. (Vas) | 297 Liters/10.49cu. ft. |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Moving Mass (Mms) | 170 Grams |
| Reference Efficiency | 3.1% |
| BL Factor | 26 T-M |
| Surface Area of Cone (Sd)m2 | 0.1255m2 |
| Coil Inductance (Le) | 2.1mH |
| EBP | 120Hz |

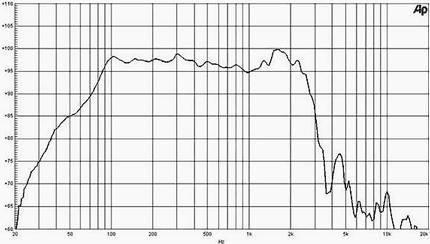

| FREQUENCY RESPONSE GRAPH | |
 |
|
| IMPEDANCE GRAPH | |
 |
|

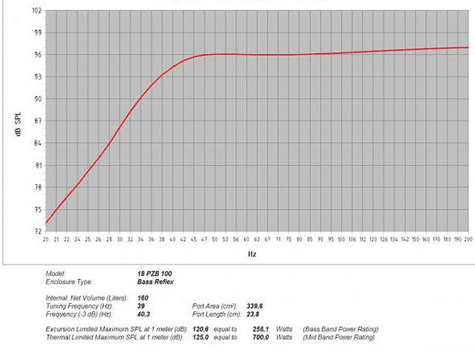

| PREDICTED FREQUENCY RESPONSE | |
 |
|
