THE B&C 18PS100 HAS A STRONG CLEAN BASS SOUND WITH 700 WATTS AES POWER HANDLING! |
|
|
|
18PS100 |
|
Item Price: $311.22 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
18PS100 - 18" HIGH POWER SUBWOOFER |
|
THE B&C 18PS100 HAS A STRONG CLEAN BASS SOUND WITH 700 WATTS AES POWER HANDLING! |
|
|
|
18PS100 |
|
Item Price: $311.22 |
|
|
SPEAKER
MODEL |
18PS100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power | 1,400 Watts |
|
Frequency
Response |
30Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
95.5dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Depth | .83" / 21mm |
| Magnetic Gap Depth | .4" / 10.5mm |
| Flux Density | 1.05T |
|
CABINET SIZE & TUNING |
|
| Cabinet Size | 8.83 cu. ft. / 250 Liters |
| Recommended Tuning | 29Hz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
18" / 460mm |
| Bolt Circle Diameter | 17.3" / 440mm |
| Baffle Cutout Diameter | 16.6" / 422mm |
| Depth | 7.5" / 191mm |
| Flange & Gasket Thickness | .625" / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 23.1 lbs./ 10.5 kg. |
| Shipping Weight | 26.01 lbs./ 11.8 kg. |
|
MATERIALS |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Cone Shape | Radial |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Voice Coil | Copper |
| Former | Glass Fibre |
| Pole Design | T-Pole |
| Spider | Double Silicone |
| Magnet | Ferrite |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
30 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor(Qes) | .41 |
| Mechanical Q (Qms) | 6.5 |
| Total Q (Qts) | .39 |
| Compliance Equiv. Vol. (Vas) | 245 Liters/8.6cu. ft. |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Moving Mass (Mms) | 202 Grams |
| Reference Efficiency | 1.6% |
| BL Factor | 22.5 T-M |
| Surface Area of Cone (Sd)m2 | 0.1255m2 |
| Coil Inductance (Le) | 2.11H |
| EBP | 73Hz |
|

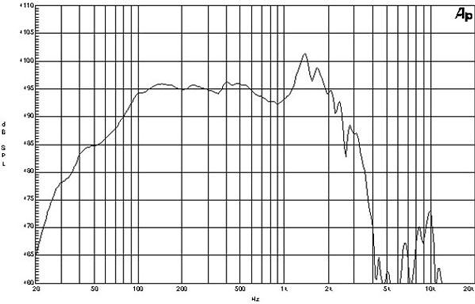

FREQUENCY RESPONSE GRAPH |
|
|
|
|

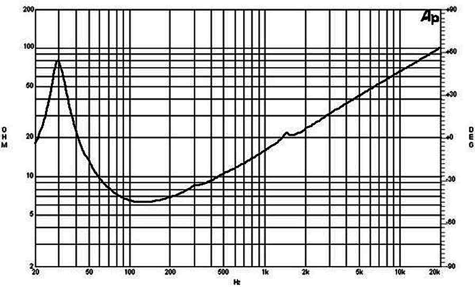

| IMPEDANCE GRAPH | |
 |
|

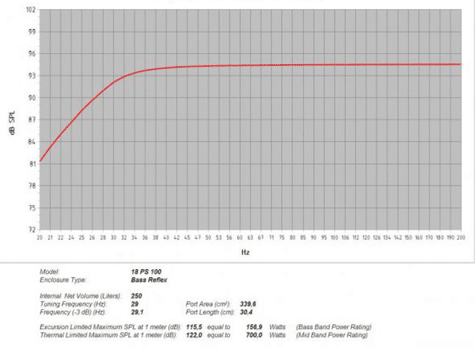

| PREDICTED FREQUENCY RESPONSE | |
 |
|
