THE B&C 15NW76 IS A LIGHTWEIGHT 15" WITH HIGH EFFICIENCY OF 100.5DB SPL W/ 1,200 WATTS POWER HANDLING! |
|
|
|
15NW76 |
|
Item Price: $326.82 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

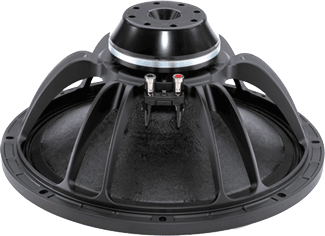

15NW76 - 15" NEODYMIUM SPEAKER |
|
THE B&C 15NW76 IS A LIGHTWEIGHT 15" WITH HIGH EFFICIENCY OF 100.5DB SPL W/ 1,200 WATTS POWER HANDLING! |
|
|
|
15NW76 |
|
Item Price: $326.82 |
|
|
SPEAKER
MODEL |
15NW76 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
15" |
|
Impedance |
8 ohms |
|
RMS Power Rating |
600 Watts |
| Program Power | 1,200 Watts |
|
Frequency Response |
40Hz - 2.0kHz |
|
Sensitivity (1W/1m) |
100.5dB |
|
Voice Coil Diameter |
3" / 76mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Spider | Double |
| Winding Depth | .75" / 19mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.3T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.5" / 393mm |
| Bolt Circle Diameter | 14.7" / 374mm |
| Baffle Cutout Diameter | 13.9" / 354mm |
| Depth | 7" / 177mm |
| Flange & Gasket Thickness | .625" / 16mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 12.3 lbs./ 5.6 kg. |
| Shipping Weight | 15.21 lbs./ 6.9 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
42 Hz |
|
Impedance
(Re) |
5.3 ohms |
| Electrical Factor (Qes) | .23 |
| Mechanical Q (Qms) | 4.3 |
| Total Q (Qts) | .22 |
| Compliance Equiv. Vol. (Vas) | 130 Liters/4.5cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Reference Efficiency | 4.4% |
| Diaphragm Mass (Mms) | 104 Grams |
| BL Factor | 25.5 T-M |
| Coil Inductance (Le) | 1.25mH |
|

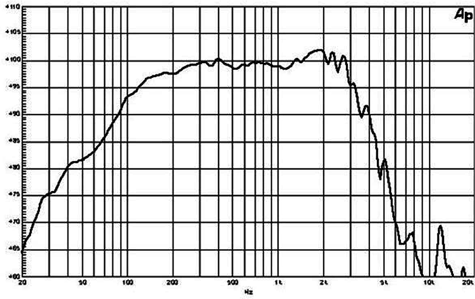

FREQUENCY RESPONSE |
|
|
|
|
|

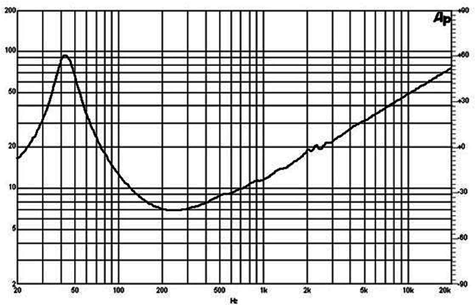

IMPEDANCE CURVE |
|
|
|
|
|

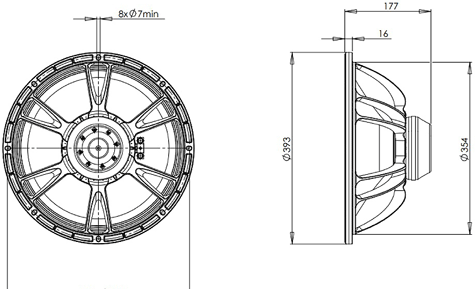

DRAWING |
|
|
|
|
