VERY DETAILED & NATURAL SOUNDING WITH A GOOD POWER HANDLING OF 400 WATTS AES! |
|
|
|
15FCX76 |
|
Item Price: $459.84 |
|
|
B & C PROFESSIONAL COMPONENTS |
|
15FXC76 - 15" COAXIAL SPEAKER |
|
VERY DETAILED & NATURAL SOUNDING WITH A GOOD POWER HANDLING OF 400 WATTS AES! |
|
|
|
15FCX76 |
|
Item Price: $459.84 |
|
|
SPEAKER
MODEL |
15FCX76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
Frequency
Response |
40Hz
- 18kHz |
| Dispersion | 80° |
|
LOW FREQUENCY WOOFER |
|
| Sensitivity (1W/1m) | 98dB |
|
AES
Power Rating |
400
Watts |
| Program Power | 800 Watts |
|
Voice Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
|
HIGH FREQUENCY DRIVER |
|
|
Sensitivity (1W/1m) |
105dB SPL |
| AES Power Rating | 80 Watts |
| Program Power | 160 Watts |
| Voice Coil Diameter | 3" / 75mm |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Magnet | Ferrite |
| Max. Recom. Crossover | 1.2kHz |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.5" / 393mm |
| Bolt Circle Diameter | 14.7" / 374mm |
| Baffle Cutout Diameter | 13.9" / 353mm |
| Depth | 7.83" / 199mm |
| Flange & Gasket Thickness | .625" / 16mm |
| Net Weight | 19.8 lbs./ 9.0 kg. |
| Shipping Weight | 21.4 lbs./ 9.7 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
40 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Electrical Factor(Qes) | .47 |
| Mechanical Q (Qms) | 8.3 |
| Total Q (Qts) | .44 |
| Compliance Equiv. Vol. (Vas) | 187 Liters/6.6cu. ft. |
| Voice Coil Overhang (Xmax) | 6.5mm |
| Reference Efficiency | 2.5% |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Diaphragm Mass (Mms) | 87 grams |
| BL Factor | 15.6 T-M |
| Coil Inductance (Le) | 1.2mH |
|

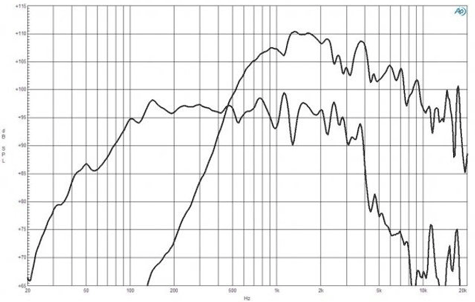

FREQUENCY RESPONSE |
|
|
|
|
|

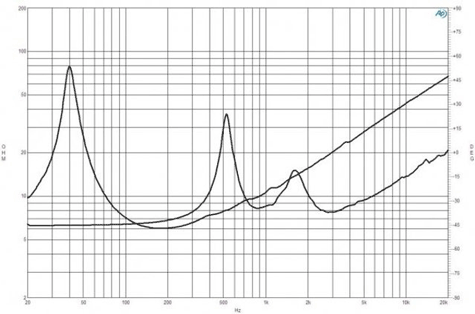

IMPEDNACE CURVE |
|
|
|
|
|

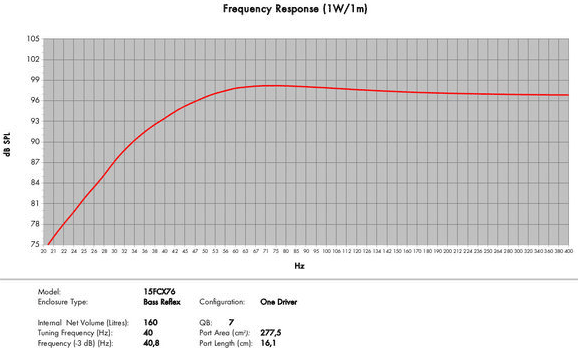

PREDICTED FREQUENCY RESPONSE |
|
|
|
|
|

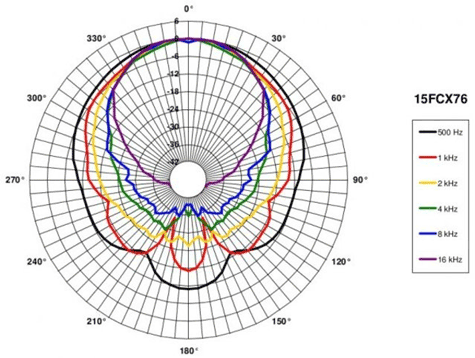

POLAR RESPONSE |
|
|
|
|
|

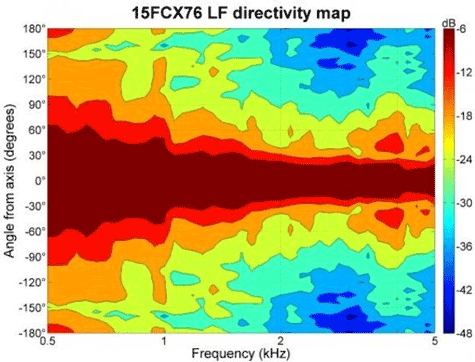

LOW FREQUENCY DIRECTIVITY |
|
|
|
|
|

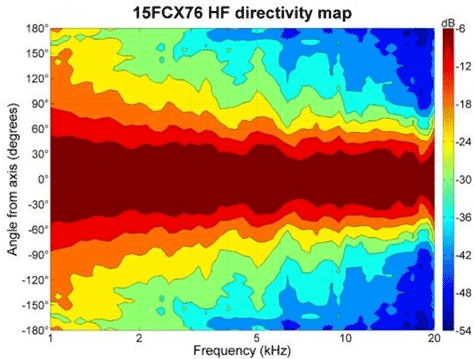

HIGH FREQUENCY DIRECTIVITY |
|
|
|
|
