LIGHTWEIGHT NEODYMIUM 15" WOOFER W/ HALF ROLL RUBBER SURROUND FOR DEEP BASS SOUND! |
|
|
|
15BG76 |
|
Item Price: $410.58 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

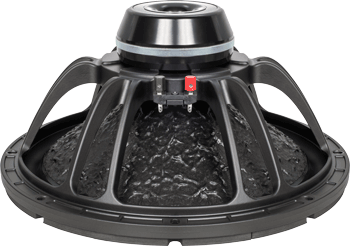

15BG76 - 15" NEODYMIUM RUBBER SURROUND SPEAKER |
|
LIGHTWEIGHT NEODYMIUM 15" WOOFER W/ HALF ROLL RUBBER SURROUND FOR DEEP BASS SOUND! |
|
|
|
15BG76 |
|
Item Price: $410.58 |
|
|
SPEAKER
MODEL |
15BG76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power | 1,000 Watts |
|
Frequency
Response |
44Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
93.4dB |
|
Voice
Coil Diameter |
3"
/ 100mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | .98" / 25mm |
| Magnetic Gap Depth | .45" / 11.5mm |
| Flux Density | 1.22T |
|
MATERIALS |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Cone Shape | Radial |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Pole Design | T-Pole |
| Former | Glass Fiber |
| Spider | Double Silicone |
| Voice Coil | Copper |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.47" / 393mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter | 13.9" / 354mm |
| Depth | 7.48" / 190mm |
| Flange & Gasket Thickness | .91" / 23mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 13.12 lbs./ 5.95 kg. |
| Shipping Weight | 15.98 lbs./ 7.25 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
44 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .61 |
| Mechanical Q (Qms) | 6.2 |
| Total Q (Qts) | .56 |
| Compliance Equiv. Vol. (Vas) | 68.4 Liters/2.42cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0855m2 |
| Voice Coil Overhang (Xmax) | 9.6mm |
| Reference Efficiency | 0.93% |
| Diaphragm Mass (Mms) | 194 Grams |
| BL Factor | 21.7 T-M |
| Coil Inductance (Le) | 1.29mH |

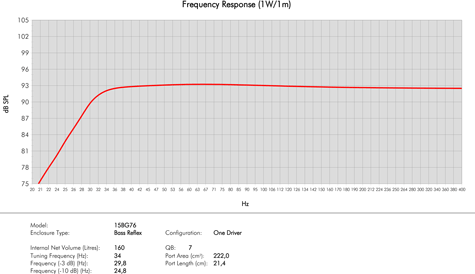

| PREDICTED FREQUENCY RESPONSE | |
 |
|

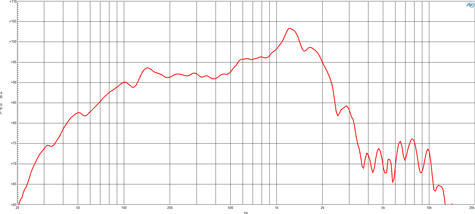

| FREQUENCY RESPONSE GRAPH | |
 |
|

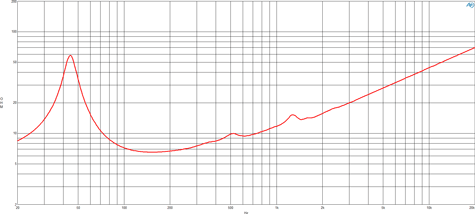

| IMPEDANCE GRAPH | |
 |
|

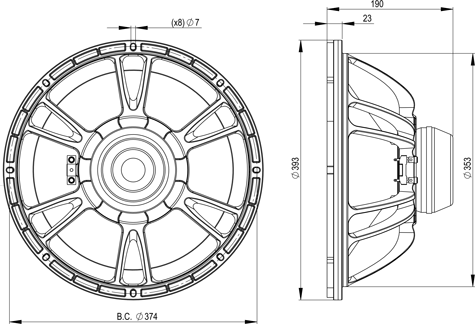

| DRAWING | |
 |
|
