10.3MM XMAX FOR CLEAN DEEP BASS W/ 2,000 WATTS POWER HANDLING! |
|
|
|
12FG100 |
|
4 0hms
Item Price: $340.02 |
|
|
8 0hms
Item Price: $340.02 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

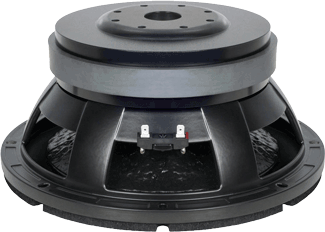

12FG100 - 12" HIGH POWER WOOFER |
|
10.3MM XMAX FOR CLEAN DEEP BASS W/ 2,000 WATTS POWER HANDLING! |
|
|
|
12FG100 |
|
4 0hms
Item Price: $340.02 |
|
|
8 0hms
Item Price: $340.02 |
|
|
SPEAKER
MODEL |
12FG100 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4 & 8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power | 2,000 Watts |
|
Frequency
Response |
34Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
91dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Winding Material | Copper |
| Former Material | Fiber Glass |
| Winding Depth | 1.05" / 26.5mm |
| Magnetic Gap Depth | .47" / 12mm |
| Flux Density | 1.1T |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Cone Shape | Radial |
| Surround Shape | Half Roll |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Voice Coil | Copper |
| Former | Glass Fiber |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.6" / 320mm |
| Bolt Circle Diameter | 11.77" / 299mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.91" / 150mm |
| Flange & Gasket Thickness | .81" / 20mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 27.56 lbs./ 12.5 kg. |
| Shipping Weight | 29.54 lbs./ 13.4 kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
34 Hz |
|
Impedance
(Re) |
4.9 ohms |
| Electrical Factor(Qes) | .39 |
| Mechanical Q (Qms) | 5.1 |
| Total Q (Qts) | .36 |
| Compliance Equiv. Vol. (Vas) | 49 Liters/1.73cu. ft. |
| Voice Coil Overhang (Xmax) | 10.3mm |
| Reference Efficiency | .49% |
| Moving Mass (Mms) | 167.8 Grams |
| BL Factor | 21.4 T-M |
| Surface Area of Cone (Sd)m2 | 0.0809m2 |
| Coil Inductance (Le) | .96mH |

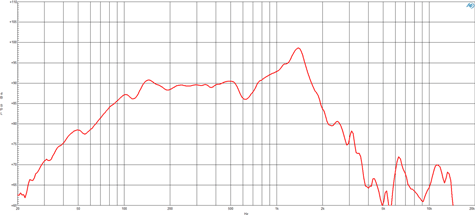

| FREQUENCY RESPONSE GRAPH | |
 |
|

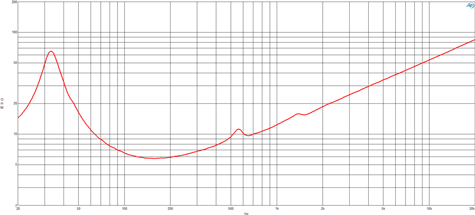

| IMPEDANCE | |
 |
|

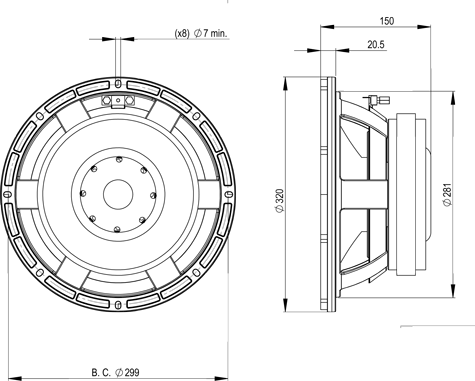

| DIMENSIONAL DRAWING | |
 |
|
