THE B&C 12BG76 HAS A WARM DEEP BASS SOUND WITH GOOD POWER HANDLING OF 500 WATTS AES IN A LIGHTWEIGHT NEODYMIUM MAGNET! |
|
|
|
12BG76 |
|
Item Price: $363.00 |
|
|
B & C PROFESSIONAL COMPONENTS |
|

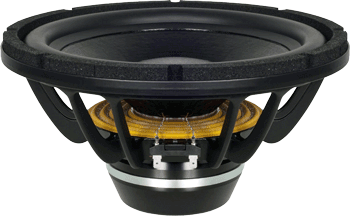

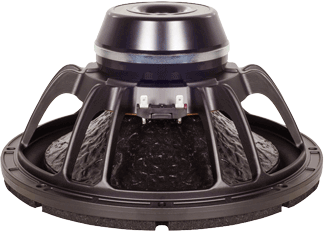

12BG76 - 12" BASS SPEAKER |
|
THE B&C 12BG76 HAS A WARM DEEP BASS SOUND WITH GOOD POWER HANDLING OF 500 WATTS AES IN A LIGHTWEIGHT NEODYMIUM MAGNET! |
|
|
|
12BG76 |
|
Item Price: $363.00 |
|
|
SPEAKER
MODEL |
12BG76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power | 1,000 Watts |
|
Frequency
Response |
45Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
92dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | .98" / 25mm |
| Magnetic Gap Depth | .45" / 11.5mm |
| Flux Density | 1.25T |
| Recommended Tuning | 42Hz |
| Recommended Cabinet Size | 1.41 cu. ft / 40 Liters |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.4" / 315mm |
| Bolt Circle Diameter | 11.73" / 298mm |
| Baffle Cutout Diameter | 11.18" / 284mm |
| Depth | 6.26" / 159mm |
| Flange & Gasket Thickness | .55" / 14mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 11.02 lbs./ 5.0 kg. |
| Shipping Weight | 13.01 lbs./ 5.9 kg. |
| MATERIALS | |
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Cone Shape | Radial |
| Surround Shape | Half Roll |
| Spider | Double |
| Voice Coil | Copper |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
44 Hz |
|
Impedance
(Re) |
5.4 ohms |
| Electrical Factor(Qes) | .44 |
| Mechanical Q (Qms) | 5.9 |
| Total Q (Qts) | .41 |
| Compliance Equiv. Vol. (Vas) | 32 Liters/1.13cu. ft. |
| Voice Coil Overhang (Xmax) | 9.5mm |
| Reference Efficiency | .65% |
| BL Factor | 22.7 T-M |
| Surface Area of Cone (Sd)m2 | 0.0522m2 |
| Diaphragm Mass (Mms) | 148 Grams |
| Coil Inductance (Le) | 1.1mH |

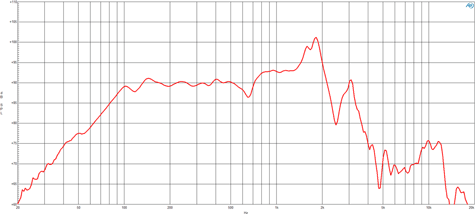

| FREQUENCY RESPONSE GRAPH | |
 |
|

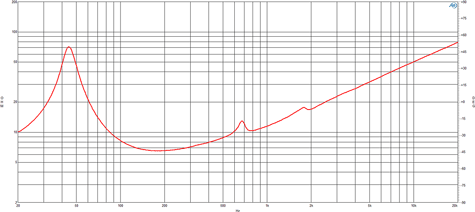

| IMPEDANCE CURVE | |
 |
|

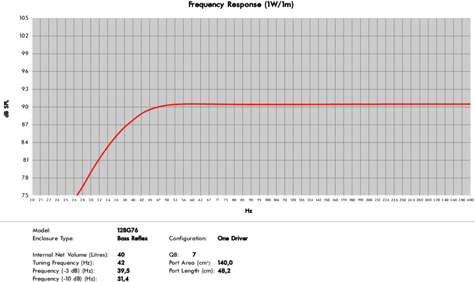

| PREDICTED FREQUENCY RESPONSE | |
 |
|
