B & C PROFESSIONAL COMPONENTS |
|

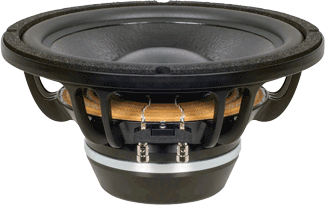

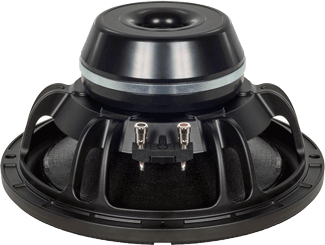

10BG76 - 10" NEODYMIUM BASS/LOW MID SPEAKER |
|
THE B&C 10BG76 BASS / LOW MID SPEAKER PLAYS FROM 49HZ TO 800HZ. 9.6MM XMAX & HANDLES 500 WATTS RMS! |
|
|
|
10BG76 |
|
4 Ohms
Item Price: $309.18 |
|
|
8 Ohms
Item Price: $309.18 |
|
|
SPEAKER
MODEL |
10BG76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
500 Watts |
| Program Power | 1,000 Watts |
|
Frequency
Response |
49Hz
- 800Hz |
|
Sensitivity
(1W/1m) |
91.5dB |
|
Voice
Coil Diameter |
3
/ 76mm |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 1.0" / 25mm |
| Magnetic Gap Depth | .45" / 11.5mm |
| Flux Density | 1.22T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter | 9.17" / 233mm |
| Depth | 5.16" / 131mm |
| Flange & Gasket Thickness | .55" / 14mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 10.58 lbs./ 4.8 kg. |
| Shipping Weight | 11.9lbs./ 5.4 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper (Front & Back) |
| Cone Shape | Curvilinear |
| Surround Shape | Half Roll |
| Demodulation Ring | Aluminum |
| Voice Coil | Copper |
| Spider | Dual |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
49 Hz |
|
Impedance
(Re) |
4.1 ohms |
| Electrical Factor(Qes) | .23 |
| Mechanical Q (Qms) | 5.74 |
| Total Q (Qts) | .22 |
| Compliance Equiv. Vol. (Vas) | 16.7 Liters/.59cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0320m2 |
| Voice Coil Overhang (Xmax) | 9.6mm |
| Reference Efficiency | .86% |
| Diaphragm Mass (Mms) | 91.4 Grams |
| BL Factor | 22.4 T-M |
| Coil Inductance (Le) | 1.37mH |

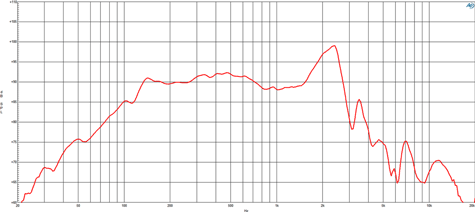

| FREQUENCY RESPONSE | |
 |
|

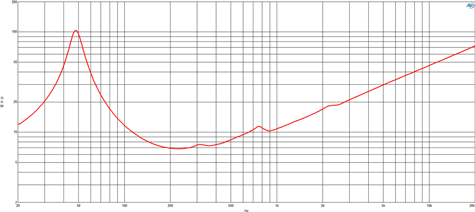

| IMPEDANCE CURVE | |
 |
|

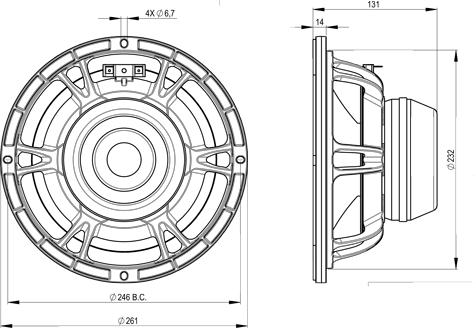

| DRAWING | |
 |
|
