LEGEND 620H - 6.5" GUITAR SPEAKER
|
|
|
LEGEND 620H - 6.5" GUITAR SPEAKER |
|
THE EMINENCE LEGEND 620H HAS A FULL BODIED UPPER BASS W/ SMOOTH & WARM SOUNDING MIDS & HIGHS FROM THIS HEMP CONE 6.5" GUITAR SPEAKER! |
|
|
Free UPS Ground Shipping in the U.S. |
620H - 4 ohms
Item Price: $104.99 |
| SPEAKER MODEL | 620H |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5"
/ 165mm |
|
Impedance |
4
ohms
|
| RMS Power Rating | 20 Watts |
| Peak Power Rating | 40 Watts |
| Usable Frequency Response |
100Hz
- 5.3kHz |
|
Voice Coil Diameter |
1.0"
/ 25.4mm |
|
Sensitivity
(1W/1m) |
94.6dB |
|
Magnet
Weight |
15
oz. |
| Net Weight | 2.9lbs. /1.32kg. |
| Shipping Weight | 3.6lbs. /1.63kg. |
| Rec. Enclosure Type | Sealed or Vented |
|
MOUNTING INFORMATION |
|
|
|
6.59" /167.4mm |
| Bolt Circle Diameter |
6.06 |
| Baffle Cutout Diameter | 5.65" / 143.5mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.23" / 5.8mm |
| Overall Depth | 2.8" / 71.1mm |
| Magnet Diameter | 4" / 101.6mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Copper |
| Coil Former Material | Paper |
| Dust Cap | Paper |
| Cone | Hemp |
| Surround | Full Molded Paper |
| Core | Non Vented |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 114 Hz |
| Impedance (Re) | 3.94 ohms |
| Coil Inductance (Le) | 0.25mH |
| Electromagnetic Q (Qes) | 0.54 |
| Mechanical Q (Qms) | 5.5 |
| Total Q (Qts) | 0.49 |
| Compliance Equiv. Vol. (Vas) | 8.67Liters / .31 cu. ft. |
| BL Product (BL) | 5.62 T-M |
| Voice Coil Overhang (Xmax) | .4mm |
| Surface Area of Cone (Sd) | .01397m2 |
|

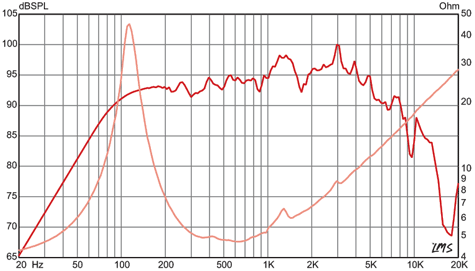

FREQUENCY RESPONSE |
|
|
|
|
