RCF LF12X401 - HIGH POWER 12" WOOFER
|
|
|
RCF LF12X401 - HIGH POWER 12" WOOFER |
|
STRONG INTENSE BASS WITH VERY LOW DISTORTION! |
|
|
|
No Longer Available |
|
WOOFER
MODEL |
LF12X401 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
45Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| X Damage (peak to peak) | 50mm/1.97" |
|
CABINET SPECIFICATIONS |
|
| Enclosure Volume | 56.64Liters/2.0cu. ft. |
| Tuning Frequency | 48Hz |
| Slot Vent Opening | 14.5" Wide x 1.625" Height |
| Vent Depth | 13.5" |
|
MATERIALS |
|
| Cone | No Pressed Pulp |
| Voice Coil Material | Copper |
| Diaphragm Material | Paper |
| Surround Material | Polycotton |
| Surround Shape | Triple Roll |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.6" / 320mm |
| Bolt Circle Diameter | 11.5"-12.0" / 293-304mm |
|
Baffle
Cutout Diameter |
11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.3" / 6.5mm |
| Volume Occupied By Woofer | .098cu. ft. |
| Overall Depth | 4.68" / 119mm |
| Net Weight | 12.2 kg. / 26.84 lbs. |
| Shipping Weight | 12.8 kg. / 28.4 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 45 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Coil Inductance (Le) | 2.1mH |
| Mechanical Q (Qms) | 8.0 |
| Electrical Factor(Qes) | .28 |
| Total Q (Qts) | .27 |
| Diaphragm Mass (Mms) | 105g |
| BL Factor (BL) | 26.1 T-M |
| Compliance Equivalent Vol. (Vas) | 50 Liters/1.77cu. ft. |
| Voice Coil Overhang (Xmax) | 8.8mm |
| Surface Area of Cone (Sd)m2 | 0.053m2 |
| Reference Efficiency | 1.5% |
| FREQUENCY RESPONSE CURVE | |
 |
|

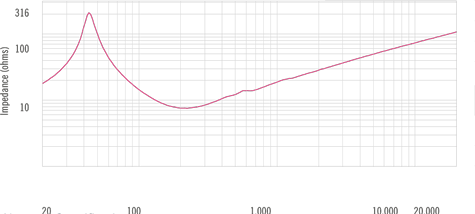

| IMPEDANCE CURVE | |
 |
|

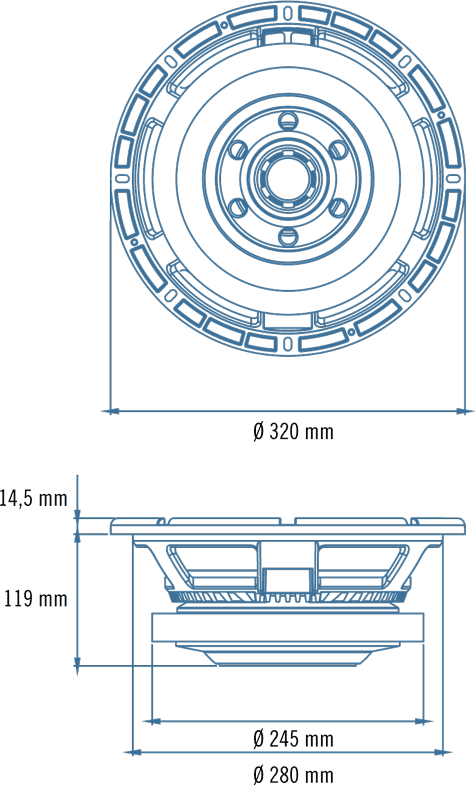

| MOUNTING DIMENSIONS | |
 |
|
