RADIAN 950PB - 2" PRO HIGH FREQ. DRIVER

LIGHTWEIGHT & POWERFUL 2"  W/ ULTRA CLEAN HIGH & MID FREQUENCIES OF THE HIGHEST LEVEL AVAILABLE!

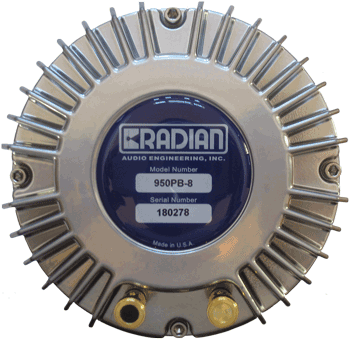

Radian 950PB

RADIAN 950PB

Radian 950PB-8 - 8 ohm version

Item Price: $429.95

Radian 950PB-16 - 16 ohm version

Item Price: $429.95

H.F. DRIVER MODEL  - 950PB

Specifications

Throat Diameter 2" / 50.8mm
Impedance 8 or 16 ohms
AES Power Rating 125 Watts above 500Hz
Program Power 250 Watts above 500Hz
Sensitivity (1W/1m) 111dB SPL
Frequency Response 500Hz - 20kHz
Recommended Crossover 500Hz @ 24dB or 900Hz @ 12dB
Voice Coil Diameter 4.0" / 101.6mm
Flux Density 1.9T

Mounting Information

Overall Diameter 5.875" / 149.26mm
Overall Depth 3.25" / 82.55mm less studs
Mounting (4) 1/4-20 studs on 4" dia. centers
Net Weight 10.4 lb. / 4.73 kg.

Materials

Diaphragm Pure Aluminum
Voice Coil Edgewound Copper Clad Aluminum
Diaphragm Suspension Mylar
Input Connectors Goldplated Push-Button Terminals
Magnet Neodymium

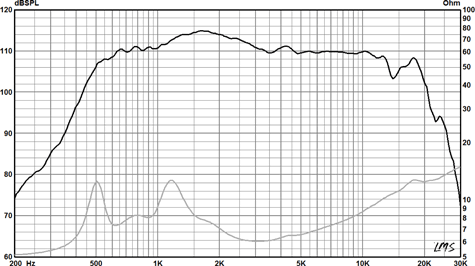

SPL vs. Frequency

Dimensional Drawing
