RADIAN 760NEOPB - LIGHTWEIGHT 2" PRO HIGH FREQ. DRIVER
|
|
|
RADIAN 760NEOPB - LIGHTWEIGHT 2" PRO HIGH FREQ. DRIVER |
|
EXTREMELY FLAT ACROSS ITS' FREQUENCY RANGE, SUPER SMOOTH SOUND W/ HIGH POWER HANDLING , HIGH EFFICIENCY AND WEIGHS ONLY 4.6LBS! |
|
|
|
RADIAN 760NEOPB |
|
Radian 760NEOPB-8 - 8 ohm version
Item Price: $319.95 |
|
|
Radian 760NEOPB-16 - 16 ohm version
Item Price: $319.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
or 16 ohms |
|
AES
Power Rating |
105 Watts above 500Hz |
| Program Power | 210 Watts above 500Hz |
| Sensitivity (1W/1m) | 113dB SPL |
| Frequency Response | 500Hz - 20kHz |
| Recommended Crossover | 500Hz @ 24dB or 900Hz @ 12dB |
| Voice Coil Diameter | 3.0" / 76.2mm |
| Flux Density | 20,000 Gauss |
|
Mounting Information |
|
|
Overall Diameter |
4.67" / 118.6mm |
| Overall Depth | 2.1" / 53.3m |
| Mounting | (4) M6 studs on 4" dia. centers |
| (4) M6 studs on 3.5" dia. centers | |
| Net Weight | 4.6 lb. / 2.09 kg. |
| Shipping Weight | 6.0 lb. / 2.72 kg. |
|
Materials |
|
| Diaphragm | Heat-Treated Aluminum Alloy |
| Voice Coil | Edgewound Copper Clad Aluminum |
| Diaphragm Suspension | Mylar |
| Input Connectors | Goldplated Push-Button Terminals |
| Magnet | Neodymium |
|

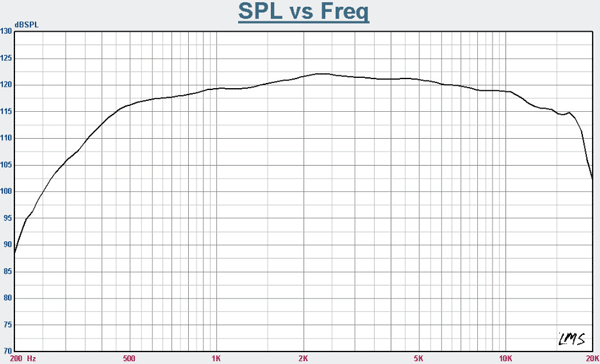

SPL vs. Frequency |
|
|
|
|
|
Dimensional Drawing |
|
|
|
|
