RADIAN 5215B - COAXIAL 2-WAY SPEAKER
|
|
|
RADIAN 5215B - COAXIAL 2-WAY SPEAKER |
|
THE RADIAN 5215B DELIVERS A LOUD & CLEAN SOUND FOR HIGH POWER STAGE MONITORS! |
|
|
|
RADIAN 5215B |
|
8 ohms LF & 8 ohms HF
Item Price: $739.95 |
|
|
RADIAN 5215B-16 |
|
|
8 ohms LF & 16 ohms HF
Item Price: $739.95 |
|
|
COAXIAL
MODEL |
|
|
Specifications |
|
| Woofer Diameter | 15" / 381mm |
|
Impedance |
8 ohms / Available 8 or 16 ohms |
|
RMS
Power Rating |
625 Watts |
|
Program
Power Rating |
1,250 Watts |
| Sensitivity (1W/1m) | 99dB SPL |
| Frequency Response | 40Hz - 18kHz |
| Recommended Crossover | 950Hz to 1.25kHz |
| Voice Coil Diameter(LF/HF) | 4.0" / 3.0" |
| Nominal Dispersion | 90° |
| Net Weight | 31 lbs. / 14 kg. |
|
Mounting Information |
|
|
Overall Diameter |
15.25" / 387.35mm |
| Bolt Circle Diameter | 14.56" / 369.82mm |
| Baffle Cutout Diameter | 14" / 355.6mm |
| Overall Depth | 8.23" / 209.04mm |
|
Materials |
|
| Woofer Cone | Kevlar Reinforced Paper |
| HF Diaphragm | Aluminum |
| HF Surround | Mylar |
| Basket | Cast Aluminum |
| Input Connectors (HF) | .25" / 6.35mm Terminals |
| Input Connectors (LF) | Push Button Terminals |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 40 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 1.3 mH |
| Total Q (Qts) | .26 |
| Mechanical Q (Qms) | 3.28 |
| Electrical Factor(Qes) | .29 |
| Comp. Equivelant Vol. (Vas) | 202 Liters |
| Voice Coil Overhang (Xmax) | 5.5 |
| Diaphragm Mass (Mms) | 88 Grams |
| BL Factor | 20 T-M |
| Surface Area of Cone (Sd)m2 | .088 m2 |
|
SPL vs. Frequency |
|
|
|
|
|

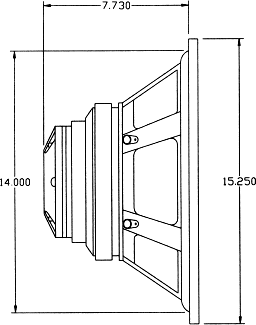

Dimensional Drawing |
|
|
|
|
