RADIAN 2216 - LOW FREQUENCY WOOFER
|
|
|
RADIAN 2216 - LOW FREQUENCY WOOFER |
|
THE RADIAN 2216 HAS A POWERFUL TIGHT SOUNDING BASS & LOW MID SOUND WITH A WATERPROOF CONE FOR OUTDOOR USE! |
|
|
|
RADIAN 2216 |
|
No Longer Available |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Impedance |
8 ohms |
|
RMS
Power Rating |
750 Watts |
| Program Power Handling | 1,500 Watts |
| Sensitivity (1W/1m) | 96dB SPL |
| Frequency Response | 34Hz - 3.5kHz |
| Recommended Max. Crossover | 1.25KHz |
| Voice Coil Diameter | 4.0" |
| Voice Coil Length | 21 mm |
| Air Gap Height | 10 mm |
| Voice Coil Max. Displacement | 20 mm |
| Recommended Enclosure | 113-170 Liters / 4-6 cu. ft. |
|
Mounting Information |
|
|
Overall Diameter |
15.25" / 387.33mm |
| Bolt Circle Diameter | 14.56" / 369.87mm |
| Baffle Cutout Diameter | 14" / 355mm |
| Overall Depth | 5.625" / 143mm |
| Net Weight | 25 lbs. / 11.4 kg. |
|
Materials |
|
| Woofer Cone | Kevlar Reinforced Paper |
| Basket | Cast Aluminum |
| Voice Coil | Edgewound Aluminum |
| Former | Fiberglass |
| Suspension | Triple Roll |
| Demodulation Rings | 2 |
| Input Connectors | Push Button Terminals |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 38.7 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | .96 mH |
| Total Q (Qts) | .375 |
| Mechanical Q (Qms) | 2.95 |
| Electrical Factor(Qes) | .43 |
| Comp. Equivelant Vol. (Vas) | 183.9 Liters / 6.5 cu. ft. |
| Voice Coil Overhang (Xmax) | 4.75 mm |
| BL Factor | 17.8 T-M |
| Diaphragm Mass (Mms) | 90.4 Grams |
| Surface Area of Cone (Sd)m2 | .0832 m2 |
|

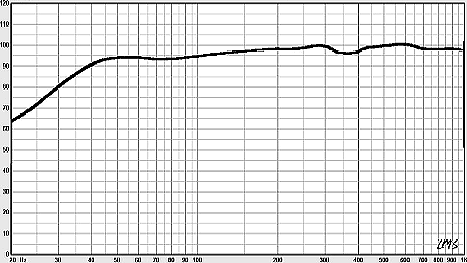

SPL vs. Frequency - 4.5 cu. ft. Vented Cabinet Tuned to 46Hz |
|
|
|
|
|
Dimensional Drawing |
|
|
|
|
