• THE PAUL FRANKLIN SIGNATURE PF-350 IS A 12" GUITAR SPEAKER FROM THE 'SIGNATURE SERIES' GUITAR SPEAKER LINEUP
• FEATURES A LARGE 4" VOICE COIL, WIDE FREQUENCY RANGE FROM 63HZ TO 3.5KHZ & HIGH SENSITIVITY OF 99DB SPL
• NICE BALANCE OF LOWS, MIDS AND HIGHS WITH POWER HANDLING OF 175 WATTS RMS & 350 WATTS PROGRAM
• WORKS WELL WHEN GOING FROM LOW TO HIGH VOLUMES WITH WARMTH & CLARITY
• HAS LOTS OF HEADROOM FOR A CLEAN FULL BODIED SOUND THANKS' TO ITS LARGE MOTOR
• WELL SUITED FOR APPLICATIONS IN OPEN OR CLOSED BACK CABINETS
• MADE BY HAND IN THE USA
• AVAILABLE IN 8 OHMS ONLY

THIS EMINENCE PAUL FRANKLIN  PF-350 12 INCH GUITAR SPEAKER DELIVERS A CLEAR WARM SOUND AT LOW & HIGH VOLUMES WITH EASE!
	No Longer Available. A Good Replacement - Beyma Liberty-8
SPEAKER MODEL	PF-350
SPECIFICATIONS
Nominal Basket Diameter	12" / 305mm
Impedance	8 ohms
RMS Power Rating	175 Watts
Peak Power Rating	350 Watts
Usable Frequency Response	65Hz-3.5kHz
Voice Coil Diameter	4" / 102mm
Sensitivity (1W/1m)	99dB
Magnet Weight	109 oz.
MOUNTING INFORMATION
Overall Diameter	12.29" / 312.17mm
Bolt Circle Diameter	11.69" / 296.93mm
Baffle Cutout Diameter	11.06" / 280.92mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.27" / 6.86mm
Overall Depth	5" / 127mm
Net Weight	21.5lbs. / 9.75 kg.
Shipping Weight	23.7lbs. / 10.75 kg.
MATERIALS
Basket	Die-Cast Aluminum
Voice Coil	Edgewound Aluminum
Coil Former Material	Polyimide
Dust Cap	Paper
Cone	Paper
Core Details	Vented
Surround	Cloth
Magnet	Ferrite
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	63 Hz
Impedance (Re)	7.41 ohms
Coil Inductance (Le)	0.4mH
Electromagnetic Q (Qes)	0.44
Mechanical Q (Qms)	8.48
Total Q (Qts)	.42
Compliance Equiv. Vol. (Vas)	61.94Liters / 2.19 cu. ft.
BL Product (BL)	16.73 T-M
Voice Coil Overhang (Xmax)	.79mm
Diaphragm Mass (Mms)	42 Grams
Surface Area of Cone (Sd)	.05454m2

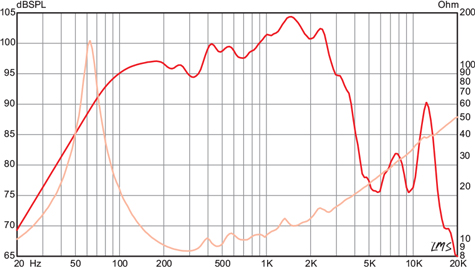

FREQUENCY RESPONSE GRAPH
