PHT-409
NO LONGER AVAILABLE
Item Price:
$41.59
|
P.AUDIO |
|

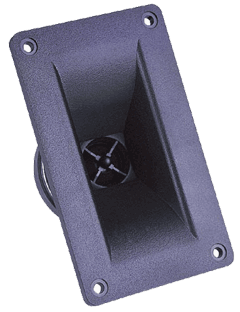

PHT-409 - HIGH FREQUENCY HORN DRIVER |
|
|
PHT-409 |
|
NO LONGER AVAILABLE Item Price: $41.59 |
|
H.F. DRIVER |
PHT409 |
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
| Dispersion | 90°x 40° |
|
RMS
Power Rating |
15 Watts |
| Program Power | 30 Watts |
|
Sensitivity
(1W/1m) |
100dB |
|
Frequency
Response |
900Hz
- 20kHz |
| Voice Coil Diameter |
1"
/ 25.4mm |
| Mount Type | Screw-on |
| Terminal Type | Solder On |
|
Materials |
|
|
Diaphragm |
PEI |
|
Voice Coil |
Round Copper Wire |
| Magnet | Ferrite |
| Horn Material | ABS + Glass Fiber |
|
Thiele-Small Parameters |
|
|
Resonant Frequency (fs) |
2.0kHz |
|
Mounting Information |
|
|
Overall Horn Width |
5.85" /
148.5mm |
| Overall Horn Height | 3.46" / 88mm |
|
Overall
Depth |
2.42" /
61.5mm |
|
Net
Weight |
1.32 lb. / .6 kg. |
|

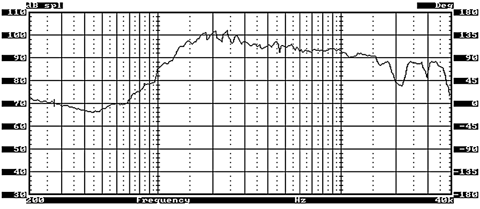

FREQUENCY RESPONSE |
 |
|
DIMENSIONS |
|
|
