LA8-CNMB - 8" MID-BASS SPEAKER
|
|
|
LA8-CNMB - 8" MID-BASS SPEAKER |
|
8" MID-BASS SPEAKER HAS A CAST FRAME, LIGHT NEO MAGNET & HANDLES 225 WATTS RMS! |
|
|
|
No Longer Available |
|
WOOFER
MODEL |
LA8-CNMB |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
8"
/ 203.2mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
225 Watts |
| Program Power Handling | 450 Watts |
|
Frequency
Response |
82Hz
- 5kHz |
|
Sensitivity
(1W/1m) |
95.5dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Max.
Crossover Frequency |
5kHz |
| Rec. Enclosure Volume(Sealed) | .2-.6cu. ft./7-17 Liters |
| Rec. Enclosure Volume(Vented) | .4-.6cu. ft./10-17 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 8.02" / 203.7mm |
| Bolt Circle Diameter | 8.6" / 218mm |
| Baffle Cutout Diameter | 7.36" / 186.9mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | 0.28" / 7.1mm |
|
Overall
Depth |
3.9" / 99.1mm |
| Magnet Weight | 7 oz. |
| Net Weight | 4.77lbs. / 2.2kg. |
| Shipping Weight | 5.47lbs. / 2.4kg. |
|
MATERIALS |
|
| Basket | Aluminum |
| Cone | Treated Paper |
| Surround | Sealed Cloth |
| Voice Coil | Edgewound Copper |
| Voice Coil Former | Polyimide |
| Core | Vented |
| Dust Cap | Treated Paper |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 81 Hz |
|
Impedance
(Re) |
5.6 ohms |
| Coil Inductance (Le) | 0.62mH |
| Electromagnetic Q (Qes) | .4 |
| Mechanical Q (Qms) | 4.66 |
| Total Q (Qts) | .37 |
| Compliance Equivalent Vol. (Vas) | 10.95 Liters/.39cu. ft. |
| Voice Coil Overhang (Xmax) |
4.5mm |
| BL Factor (BL) | 13.0 T-M |
| Surface Area of Cone (Sd) | .02224m2 |
|

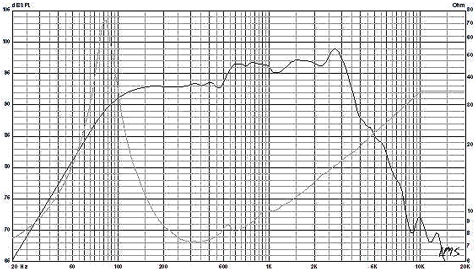

LA8-CNMB RESPONSE CURVE |
|
|
|
|
