JENSEN TORNADO - 12" NEODYMIUM GUITAR SPEAKER
|
|
|
JENSEN TORNADO - 12" NEODYMIUM GUITAR SPEAKER |
|
|
Item Price: $191.33 |
|
|
Tornado-8 - 8 ohm version |
|
Tornado-16 - 16 ohm version |
|
SPEAKER
MODEL |
TORNADO |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 307mm |
|
Impedance |
8
/ 16 ohms |
|
Rated Power |
100
Watts |
| Musical Power | 200 Watts |
|
Frequency
Response |
60Hz
-6.0kHz |
|
Sensitivity
(1W/1m) |
97.3 dB |
|
Voice
Coil Diameter |
2"
/ 50mm |
| Magnet Assembly Weight | 7 oz. |
|
Speaker Materials |
|
| Magnet | Neodymium |
| Voice Coil Winding | Copper |
| Voice Coil Former | Nomex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | 12.09" / 307mm |
| Front Mount Baffle Cutout | 10.09" / 277mm |
| Bolt Circle Diameter | 11.56" / 293.5mm |
| Overall Depth | 5.52" / 140.3mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 72 Hz |
| Impedance (Re) | 6.81 ohms |
| Coil Inductance (Le) | .7mH |
| Electromagnetic Q (Qes) | .55 |
| Mechanical Q (Qms) | 9.51 |
| Total Q (Qts) | .52 |
| Comp. Equiv. Vol. (Vas) | 55.9Liters/1.97cu. ft. |
| Max. Displacement (Xmax) | 1.0mm |
| Surface area of Cone (Sd) | .491 m2 |
| Efficiency (Half Space) | 2.82% |
| Moving Mass (Mms) | 29.9 Grams |
| Pe Maximum (Watts) | 200 |
| Flux Density | 1.2 T |
|

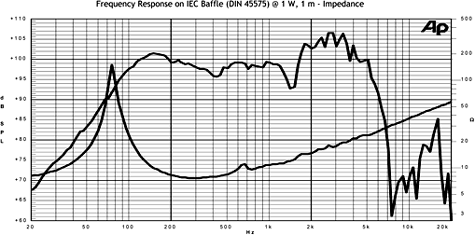

Frequency Response |
|
 |
|

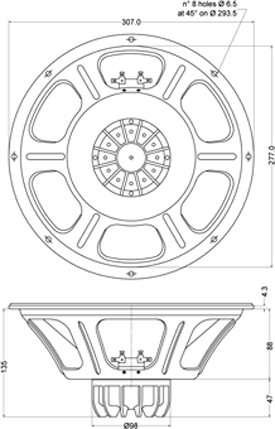

| Dimensional Drawing | |
 |
|
