P12R - VINTAGE GUITAR SPEAKER
|
|
|
P12R - VINTAGE GUITAR SPEAKER |
|
|
Item Price: $125.78 |
|
|
P12R-8 - 8 ohm version |
|
P12R-16 - 16 ohm version |
|
SPEAKER MODEL |
P12R |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 306mm |
|
Impedance |
8
/ 16 ohms |
|
Rated Power |
25
Watts |
| Musical Power | 50 Watts |
|
Frequency
Response |
60Hz
-8kHz |
|
Sensitivity
(1W/1m) |
93.6dB |
|
Voice
Coil Diameter |
1"
/ 25mm |
| Magnet Assembly Weight | 7 oz./ 200 grams |
| Net Weight | 3.55 lbs. |
|
Speaker Materials |
|
| Magnet | Alnico |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Felt |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Front Mount Baffle Cutout | 10.91" / 277mm |
| Overall Depth | 137.5mm / 5.41" |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 74 Hz |
| Impedance (Re) | 6.7 ohms |
| Coil Inductance (Le) | .58mH |
| Electromagnetic Q (Qes) | 2.06 |
| Mechanical Q (Qms) | 24.6 |
| Total Q (Qts) | 1.9 |
| Comp. Equiv. Vol. (Vas) | 64.2 Liters/2.27cu. ft. |
| Max. Displacement (Xmax) | 1.0mm |
| Surface area of Cone (Sd) | .4908 m2 |
| Efficiency (Half Space) % | 1.25% |
| Pe Maximum (Watts) | 50 |
| Flux Density | .96 T |
|

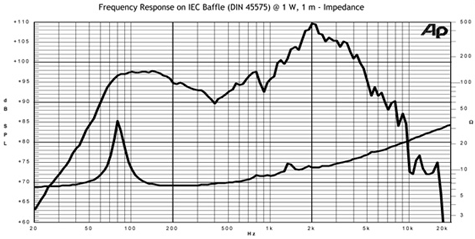

Frequency Response |
|
|
|
|
|

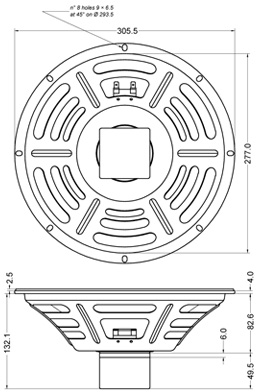

Dimensional Drawing |
|
|
|
|
