NEO15-150 - 15" BASS GUITAR SPEAKER
|
|
|
NEO15-150 - 15" BASS GUITAR SPEAKER |
|
THIS LIGHTWEIGHT 15" BASS SPEAKER HAS A NICE FULL TIGHT SOUND! |
|
|
|
No Longer Available |
|
SPEAKER
MODEL |
NEO15-150 |
|
Specifications |
|
|
Nominal
Basket Diameter |
15"
/ 385mm |
|
Impedance |
4 ohms |
|
RMS Power |
150
Watts |
| Program Power | 300 Watts |
|
Sensitivity
(1W/1m) |
100.1dB |
| Frequency Response | 55Hz to 4kHz |
|
Voice
Coil Diameter |
2.5"
/ 65mm |
| Magnet Assembly Weight | 7.7 oz./ 220 grams |
| Net Weight | 6.5 lbs. / 2.95 kg. |
|
Speaker Materials |
|
| Magnet | Neodymium |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Treated Cloth |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | 15.08" / 383mm |
| Front Mount Baffle Cutout | 14.09" / 358mm |
| Mounting Hole B.C.D. | 14.65" / 372mm |
| Number of Mounting Holes | 8 |
| Overall Depth | 6.56" / 166.5mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 52.2 Hz |
| Impedance (Re) | 3.6 ohms |
| Coil Inductance (Le) | .73mH |
| Electromagnetic Q (Qes) | .50 |
| Mechanical Q (Qms) | 5.41 |
| Total Q (Qts) | .46 |
| Comp. Equiv. Vol. (Vas) | 170.1 Liters/6.01cu. ft. |
| Max. Displacement (Xmax) | 4.0mm |
| Surface Area of Cone (Sd) | .7547 m2 |
| Efficiency (Half Space) | 4.66% |
| Pe Maximum (Watts) | 300 |
| Flux Density | 1.14 T |

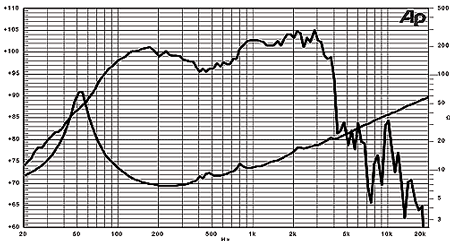

| Frequency Response | |
 |
|
