NEO10-100 - 10" GUITAR SPEAKER
|
|
|
NEO10-100 - 10" GUITAR SPEAKER |
|
LIGHTWEIGHT 10" GUITAR SPEAKER HAS A SLOW BREAKUP W/ CLARITY! |
|
|
|
No Longer Available |
|
SPEAKER
MODEL |
NEO10-100 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10"
/ 259mm |
|
Impedance |
8
ohms |
|
Rated Power (IEC268.5) |
100
Watts |
| Musical Power | 200 Watts |
|
Sensitivity
(1W/1m) |
98.9dB |
| Frequency Response | 90Hz - 5.0kHz |
|
Voice
Coil Diameter |
2"
/ 50mm |
| Magnet Assembly Weight | 7.1 oz./ 200 grams |
| Total Weight | 3.85 lbs. / 1.75 kg. |
|
Speaker Materials |
|
| Magnet | Neodymium |
| Voice Coil Winding | Copper |
| Voice Coil Former | Nomex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | 10.16" / 258mm |
| Front Mount Baffle Cutout | 9.09" / 231mm |
| Mounting Hole B.C.D. | 9.65" / 245mm |
| Number of Mounting Holes | 8 |
| Overall Depth | 4.53" / 115mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 102.7 Hz |
| Impedance (Re) | 6.96 ohms |
| Coil Inductance (Le) | 0.51mH |
| Electromagnetic Q (Qes) | .35 |
| Mechanical Q (Qms) | 15.89 |
| Total Q (Qts) | .49 |
| Comp. Equiv. Vol. (Vas) | 20.8 Liters/.73cu. ft. |
| Max. Displacement (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .330 m2 |
| Efficiency (Half Space) | 4.26% |
| Pe Maximum (Watts) | 200 |
| Flux Density | 1.2 T |

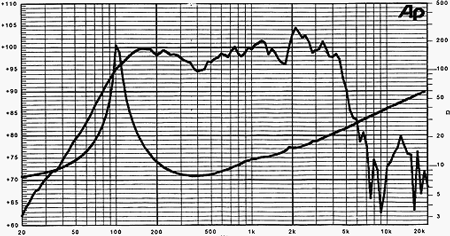

| Frequency Response | |
 |
|
