Jensen 'C Series'

C12N  -  12" GUITAR SPEAKER

Item Price: $112.26
Jensen C12N

C12N-4  -  4 ohm version

C12N-8  -  8 ohm version

C12N-16  -  16 ohm version

SPEAKER MODEL

C12N

Specifications

Nominal Basket Diameter

12" / 306mm

RMS Power

50 Watts

Program Power 100 Watts

Frequency Response

70Hz -6kHz

Sensitivity (1W/1m)

98.4dB SPL

Voice Coil Diameter

1.5" / 38mm

Magnet Assembly Weight 28.6 oz.
Net Weight 7.15 lbs. / 3.25 kg.

Speaker Materials

Magnet Ferrite
Voice Coil Winding Copper
Voice Coil Former Kapton
Cone Paper
Surround Integrated Paper
Basket Pressed Sheet Steel

Mounting Information

Overall Diameter 12.09" / 307mm
Front Mount Baffle Cutout 10.91" / 277mm
Overall Depth 4.76" / 121mm

Thiele-Small Parameters

Resonant Frequency (fs) 112 Hz
Impedance (Re) 6.5 ohms
Coil Inductance (Le) .9mH
Electromagnetic Q (Qes) 1.05
Mechanical Q (Qms) 7.01
Total Q (Qts) 0.92
Compliance Equiv. Vol. (Vas) 27.6 Liters/.97cu. ft.
Voice Coil Overhang (Xmax) 1.0mm
Surface Area of Cone (Sd) .04908 m2
Efficiency (Half Space) % 3.48%
Pe Maximum (Watts) 100

Frequency Response

Jensen C12N Frequency Reponse

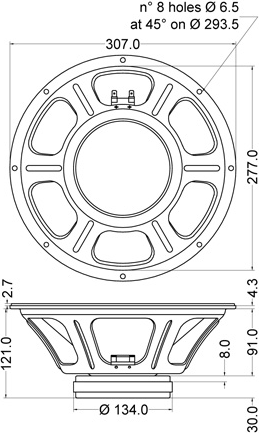

Mounting Dimensions
