E140-8 - BASS/KEYBOARD MUSICAL INSTRUMENT LOUDSPEAKER |
|
400 WATT RMS 15" BASS GUITAR SPEAKER HAS A CLEAN CRISP SOUND! |
|
|
|
JBL E-140 |
SOLD OUT! DISCONTINUED MODEL. $287.99 Good replacement is the Beyma 15WR400 |
|
| SPEAKER MODEL | E140-8 |
|
SPECIFICATIONS |
|
| Nominal Basket Diameter | 15" / 380mm |
| Impedance | 8 ohms |
| Continuous Program Power | 400 Watts |
| Frequency Response | 40Hz -2.5kHz |
| Sensitivity (1W/1m) | 100dB |
| Voice Coil Diameter | 4" / 102mm |
|
Voice
Coil Material |
Copper |
|
MOUNTING INFORMATION |
|
| Front Mount Baffle Cutout | 13.968" / 355mm |
|
Rear
Mount |
13.5" / 343mm |
| Bolt Circle Diameter | 14.5625" / 370mm |
| Overall Depth | 137mm / 5.5" |
| Magnet Assembly Weight | 8.5kg / 18.625" |
| Net Weight | 10.1 kg / 22.25 lbs. |
|
THIELE-SMALL |
|
| Resonant Frequency (fs) | 32 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 1.1mH |
| Electromagnetic Q (Qes) | .19 |
| Mechanical Q (Qms) | 5.0 |
| Total Q (Qts) | .17 |
| Compliance Equivalent Vol. (Vas) | 300 Liters/10.5cu. ft. |
| Voice Coil Overhang (Xmax) | 3.5mm |
| Surface Area of Cone (Sd) | .089 m2 |
| Efficiency (Half Space) | 4.9 % |
| Pe Maximum (Watts) | 200 |
| Displacement Volume (Vd) | 312 cm3 |
| Flux Density | 1.35 T (13,500 gauss) |
|

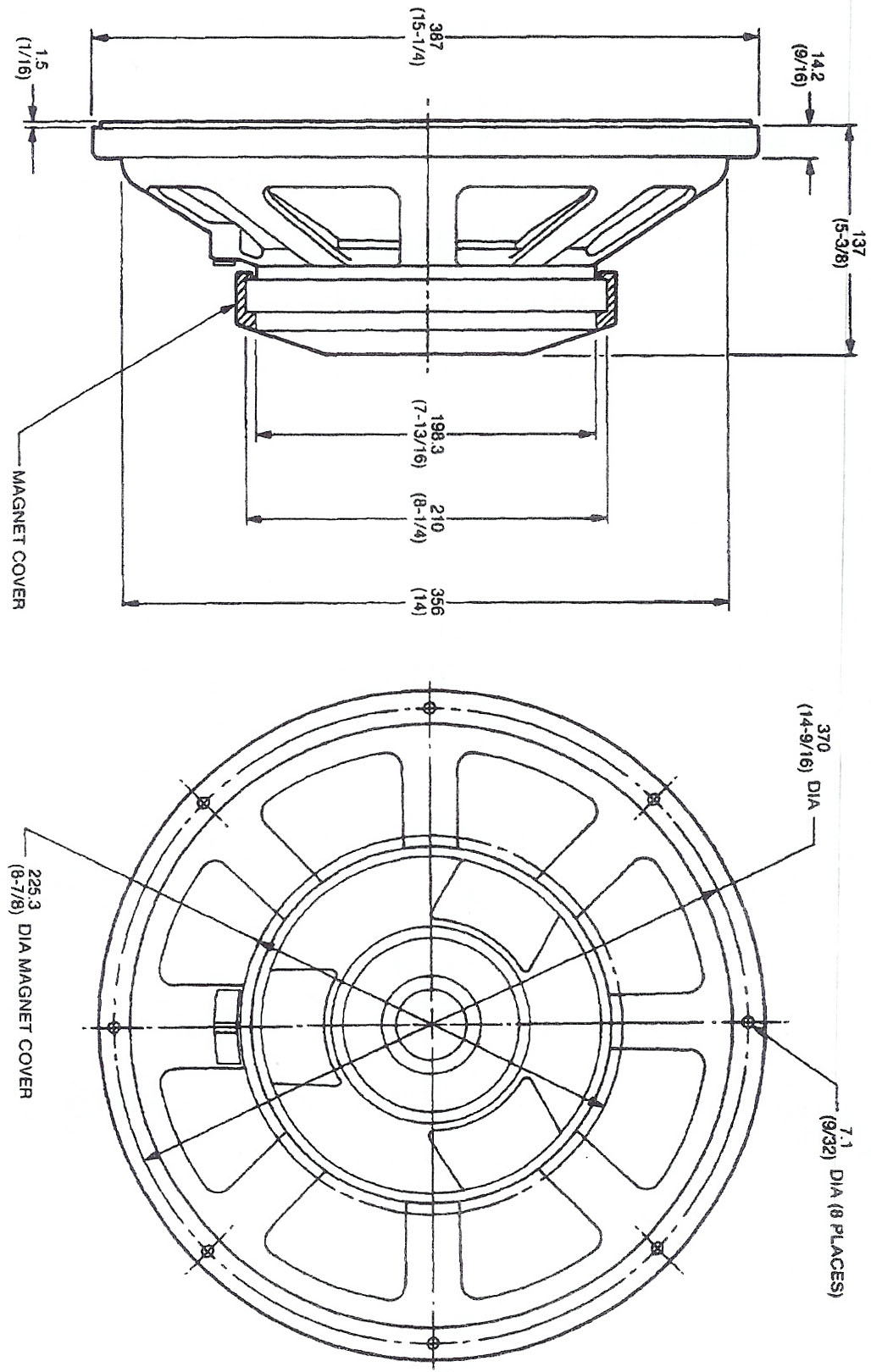

E-140 DRAWING |
|
|
|
|
Continuous program power is defined as 3dB greater than continuous sine wave power.
Sensitivity is based on swept 500 hz to 2.5 khz signal.
