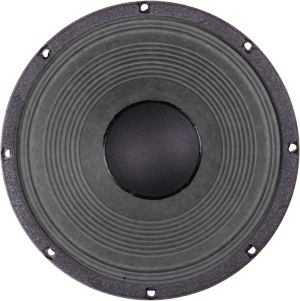

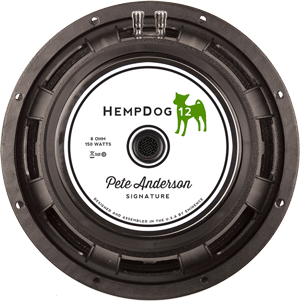

Hemp Dog-12 - 12" Guitar Speaker
|
|
|
|
|
Hemp Dog-12 - 12" Guitar Speaker |
|
THE EMINENCE HEMP DOG-12 12" GUITAR SPEAKER DELIVERS A WARM SMOOTH BALANCED SOUND! |
|
|
|
No Longer Available |
| SPEAKER MODEL | HEMP DOG-12 |
|
SPECIFICATIONS |
|
| Nominal Basket Diameter | 12" / 305mm |
| Impedance | 8 ohms |
| RMS Power Rating | 150 Watts |
| Usable Frequency Response | 80Hz-3.8kHz |
| Voice Coil Diameter | 2.5" / 64mm |
| Sensitivity (1W/1m) | 102.3dB |
| Air Gap Height | .37" / 9.5mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.38" / 314.5mm |
| Bolt Circle Diameter | 11.57" / 293.9mm |
| Baffle Cutout Diameter | 11.07" / 281.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.26" / 6.6mm |
| Overall Depth | 5.38" / 136.7mm |
| Magnet Weight | 80 oz. |
| Net Weight | 16.3 lbs. / 7.39 kg. |
| Shipping Weight | 18.0 lbs. / 8.16 kg. |
|
MATERIALS |
|
| Basket | Die-Cast Aluminum |
| Voice Coil | Edgewound Aluminum |
| Coil Former Material | Polyimide |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Core | Vented |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 69 Hz |
| Impedance (Re) | 6.55 ohms |
| Coil Inductance (Le) | 0.41mH |
| Electromagnetic Q (Qes) | 0.36 |
| Mechanical Q (Qms) | 10.02 |
| Total Q (Qts) | .35 |
| Compliance Equiv. Vol. (Vas) | 74.33Liters / 2.62 cu. ft. |
| BL Product (BL) | 15.23 T-M |
| Diaphragm Mass (Mms) | 30 Grams |
| Voice Coil Overhang (Xmax) | 1.27mm |
| Surface Area of Cone (Sd) | .05454m2 |

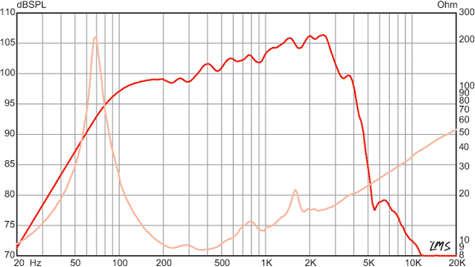

| FREQUENCY RESPONSE GRAPH | |
 |
|
