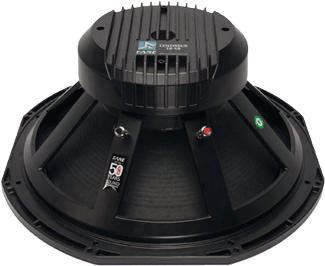

COL18XB - 18" HIGH EXCURSION WOOFER
|
|
|
COL18XB - 18" HIGH EXCURSION WOOFER |
|
THIS FANE COL8XB DELIVERS STRONG LOWS WITH A 7.5MM XMAX AND HIGH EFFICIENCY OF 99DB SPL! |
|
|
|
Item Price: $299.95 NOW IN STOCK! |
|
SPEAKER
MODEL |
COL18XB |
|
Specifications |
|
|
Nominal
Basket Diameter |
18" / 457.2mm |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
|
Program
Power Rating |
2,000 Watts |
|
Peak
Power Rating |
4,000 Watts |
|
Frequency
Response |
35Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
99dB |
| Voice Coil Diameter | 4" / 101.6mm |
| Voice Coil Winding Height | .09" / 23mm |
| Recommended Enclosure Volume | 4.41 - 14.12 cu. ft. / 125 - 400 Liters |
|
Mounting Information |
|
|
Overall
Diameter |
19.1" / 485mm |
| Width Across Flats | 18" / 457mm |
| Baffle Cutout Diameter (Front) | 16.53" / 420mm |
| Baffle Cutout Diameter (Rear) | 16.33" / 414mm |
|
No.
Of Mounting Holes |
8 |
|
Overall
Depth |
8.07" / 205mm |
| Flange Thickness | .465" / 11.8mm |
| Volume Displaced By Driver | .269cu. ft. / 7.6 liters |
|
Magnet
Weight |
120 oz. |
| Net Weight | 31.29 lb. / 14.2kg. |
| Shipping Weight | 35.26 lb. / 16kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Voice Coil | Copper 'Sandwich' Inside/Outside Windings |
| Coil Former | Fiberglass |
| Cone | Paper |
| Surround | Polyvinyl Damped Double 1/2 Roll Linen |
| Dust Dome | Paper |
| Connectors | Push Button Spring Terminals |
| Gaskets | Front & Rear Supplied |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 33 Hz |
|
Impedance
(Re) |
6.5 ohms |
| Coil Inductance (Le) | 1.99 mH |
| Electromagnetic Q (Qes) | .358 |
| Mechanical Q (Qms) | 5.77 |
| Total Q (Qts) | .337 |
| Voice Coil Overhang (Xmax) | 7.5mm |
| Surface Area of Cone (Sd) | .1131m2 |
| BL Product (BL) | 25.9T-M |
| Compliance Equivalent Vol. (Vas) | 236 liters / 8.3 cu.ft. |
| Reference Efficiency | 2.14% |
| Diaphragm Mass (Mms) | 173 Grams |
| Mechanical Compliance (Cms) | .013 mm/N |
| Peak Dia. Displacement Vol. (Vd) | .803cc |
|
Frequency Response Graph |
|
|
COMING SOON! |
|
