FANE AXIOM SPEAKERS
AX15-300B - BASS GUITAR SPEAKER
|
|
|
AX15-300B - BASS GUITAR SPEAKER |
|
WARM TIGHT BASS SOUND WITH NICE MIDS & HIGHS THAT ARE CLEAN & NATURAL SOUNDING! |
|
|

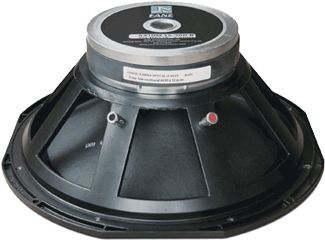

FANE AX15-300B |
|
|
|
4 Ohm Version CURRENTLY BACKORDERED
Item Price: $239.95 |
|
8 Ohm Version
Item Price: $239.95 |
|
|
16 Ohm Version
Item Price: $239.95 |
|
| SPEAKER MODEL | AX15-300B |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" / 381mm |
|
Impedance |
4, 8
or 16 ohms |
|
RMS
Power Rating |
300
Watts |
|
Frequency
Response |
40Hz
- 6.5kHz |
|
Sensitivity
(1W/1m) |
100dB |
| Voice Coil Diameter | 3" / 76mm |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Voice Coil | Copper |
| Magnet Type | Ferrite |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 16" / 406.4mm |
|
|
13.85" / 352mm |
| Overall Depth | 5.6" / 142mm |
|
|
7.16" / 182mm |
|
|
4 |
|
|
.28" / 7.1mm |
| Magnet Weight | 84 oz |
| Net Weight | 18.73 lb. / 8.5kg. |
| Shipping Weight | 20.72 lb. / 9.4kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 49 Hz |
| Impedance (Re) | 6.5 ohms |
| Electromagnetic Q (Qes) | .37 |
| Mechanical Q (Qms) | 7.37 |
| Total Q (Qts) | .35 |
| BL Product(BL) | 20.2T-M |
| Mechanical Compliance of Suspension (Cms) | 1.0mm/N |
| Dia. Mass Incl. Airload (Mms) | 95 grams |
| Peak Dia. Displacement (Vd) | .78cc |
| Compliance Equiv. Vol. (Vas) | 110 liters / 3.88 cu.ft. |
|

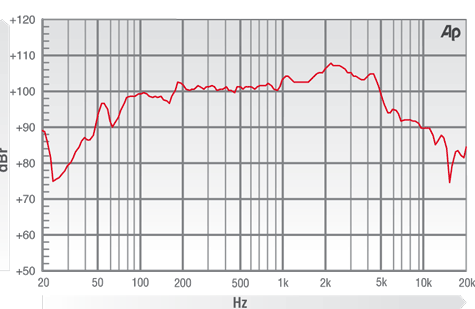

FREQUENCY RESPONSE GRAPH |
|
|
|
|
