• THE FAITAL PRO 3FE20 3" MIDRANGE SPEAKER CAN HANDLE 20 WATTS AES & 40 WATTS PROGRAM POWER
• EXTREMELY WIDE FREQUENCY RANGE FROM 100HZ ALL THE WAY UP TO 20KHZ
• EFFICIENCY OF 91DB SPL & WEIGHS ONLY .51 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
• ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS
• AVAILABLE IN 4, 8 OR 16 OHMS

THE 3FE20 IS A ONE-OF-A-KIND 3" SPEAKER THAT HAS A WIDE FREQUENCY RANGE FROM 100HZ TO 20KHZ!
Replaced by the 3FE25	4 Ohms SOLDOUT Item Price: $19.00
	8 Ohms SOLDOUT Item Price: $19.00
	16 Ohms SOLDOUT Item Price: $19.00
WOOFER MODEL	3FE20
Specifications
Nominal Basket Diameter	3" / 80mm
Impedance	8 or 16 ohms
AES Power Rating	20 Watts
Program Power	40 Watts
Frequency Response	100Hz - 20.0kHz
Sensitivity (1W/1m)	91dB SPL
Voice Coil Diameter	.75" / 19mm
Winding Depth	5 mm
Magnetic Gap Depth	4 mm
X Damage (peak to peak)	7.3 mm
BL Factor	4.5 N/A
Mounting Information
Overall Diameter	3.15" / 80mm
Bolt Circle Diameter	3.62" / 92mm
Baffle Cutout Diameter-Front Mount	2.91" / 74mm
No. Of Mounting Holes	4
Overall Depth	1.56" / 39.5mm
Flange & gasket Thickness	0.26" / 6.5mm
Net Weight	.51 lb. / .23 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Kapton
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	110 Hz
Impedance (Re)	6.2 ohms
Coil Inductance (Le)	0.1 mH
Mechanical Q (Qms)	4.64
Electrical Factor (Qes)	.43
Total Q (Qts)	.39
Comp. Equivelant Vol. (Vas)	0.035 ft3 / 1.2 Liters
Voice Coil Overhang (Xmax)	1.83 mm
Surface Area of Cone (Sd)m2	0.0294m2
Reference Efficiency	.36%
Diaphragm Mass (Mms)	21 Grams
Mechanical Compliance (Cms)	.97 mm/N
Mechanical Resistance (Rms)	.32 Kg/s
Frequency Response

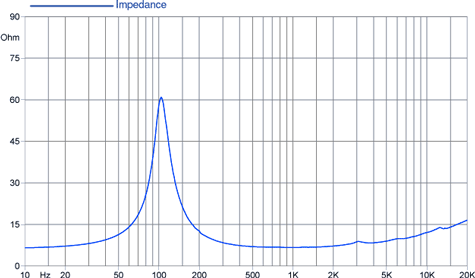

Free Air Impedance Curve

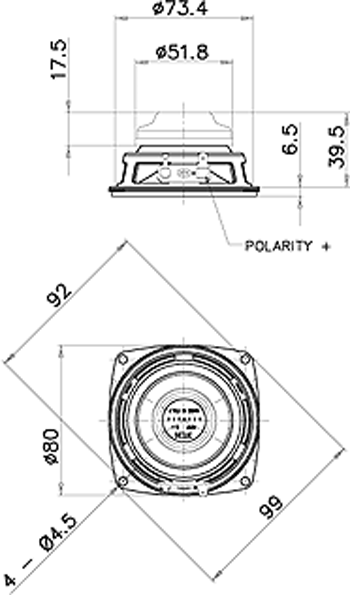

Mounting Dimensions
