• THE FAITAL PRO W8N8-200 8" SPEAKER CAN HANDLE 200 WATTS AES & 400 WATTS PROGRAM POWER
• EFFICIENCY OF 92DB SPL & A HIGH 8.48MM XMAX FOR CLEAN STRONG SOUND
• WIDE FREQUENCY RANGE FROM 80HZ TO 5.0KHZ
• WEIGHS ONLY 3.96 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MID-BASS IN 2 OR 3-WAY PA SPEAKER SYSTEMS

THE W8N8-200 HAS SMOOTH BASS & MIDS W/ 8.48MM XMAX & 400 WATTS POWER HANDLING!
	Item Price: $168.95
WOOFER MODEL	W8N8-200
Specifications
Nominal Basket Diameter	8" / 200mm
Impedance	8 ohms
AES Power Rating	200 Watts
Program Power	400 Watts
Frequency Response	80Hz - 5.0kHz
Sensitivity (1W/1m)	92dB SPL
Voice Coil Diameter	2" / 52mm
Voice Coil Length	19.3 mm
Air Gap Height	7.0 mm
X Damage (peak to peak)	12.9 mm
BL Factor	8.9 N/A
Mounting Information
Overall Diameter	8.81"/8.18" / 223.8mm/207.9
Bolt Circle Diameter	8.27" / 210mm
Baffle Cutout Diameter-Front Mount	7.16" / 182mm
No. Of Mounting Holes	8
Overall Depth	4.59" / 116.7mm
Flange & gasket Thickness	0.42" / 10.7mm
Net Weight	3.96 lb. / 1.8 kg.
Shipping Weight	4.84 lb. / 2.2 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	74 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	0.6 mH
Mechanical Q (Qms)	5.3
Electrical Factor (Qes)	.69
Total Q (Qts)	.61
Comp. Equivelant Vol. (Vas)	0.32 ft3 / 9.06 Liters
Voice Coil Overhang (Xmax)	8.48 mm
Surface Area of Cone (Sd)m2	0.01773m2
Reference Efficiency	0.5%
Diaphragm Mass (Mms)	23 Grams
Mechanical Compliance (Cms)	.2 mm/N
Mechanical Resistance (Rms)	2.0 Kg/s

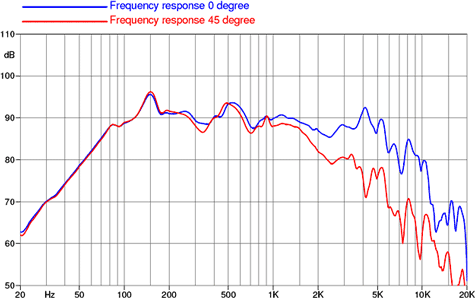

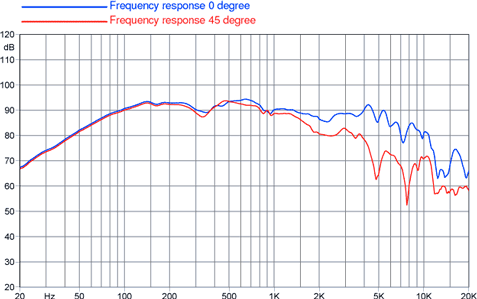

Frequency Response

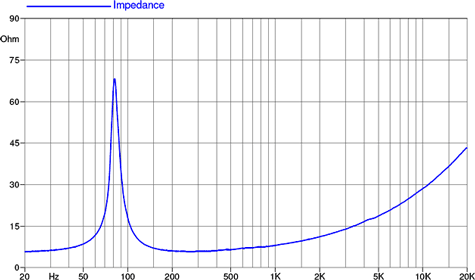

Free Air Impedance Curve

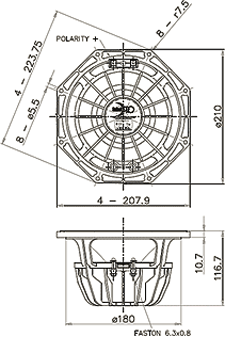

Mounting Dimensions
