FAITAL PRO W6N8-120 - 6.5" MIDRANGE SPEAKER

THE W6N8-120 HAS A WIDE FREQUENCY RANGE FROM 100HZ TO 10KHZ W/ 5MM XMAX!

Faital Pro W6N8-120

Item Price: $136.95

WOOFER MODEL W6N8-120

Specifications

Nominal Basket Diameter 6.5" / 160mm
Impedance 8 ohms
AES Power Rating 120 Watts
Program Power 240 Watts
Frequency Response 100Hz - 10.0kHz
Sensitivity (1W/1m) 95dB SPL
Voice Coil Diameter 1.5" / 37mm
Voice Coil Length 12.0 mm
Air Gap Height 6.0 mm
X Damage (peak to peak) 11.6 mm
BL Factor 10.3 N/A

Mounting Information

Overall Diameter 7.34"/6.37" / 186.5mm/162
Bolt Circle Diameter 6.77" / 172mm
Baffle Cutout Diameter-Front Mount 5.7" / 145mm
No. Of Mounting Holes 8
Overall Depth 3.43" / 87.2mm
Flange & gasket Thickness 0.29" / 7.5mm
Net Weight 2.86 lb. / 1.3 kg.
Shipping Weight 3.3 lb. / 1.5 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 100 Hz
Impedance (Re) 5.8 ohms
Coil Inductance (Le) 0.35 mH
Mechanical Q (Qms) 6.36
Electrical Factor (Qes) .36
Total Q (Qts) .34
Comp. Equivelant Vol. (Vas) 0.178 ft3 / 5.04 Liters
Voice Coil Overhang (Xmax) 5.0 mm
Surface Area of Cone (Sd)m2 0.0114m2
Reference Efficiency 0.93%
Diaphragm Mass (Mms) 11.7 Grams
Mechanical Compliance (Cms) .27 mm/N
Mechanical Resistance (Rms) 1.03 Kg/s

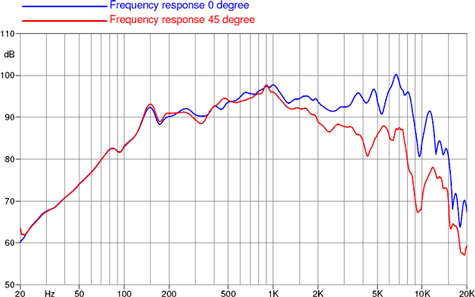

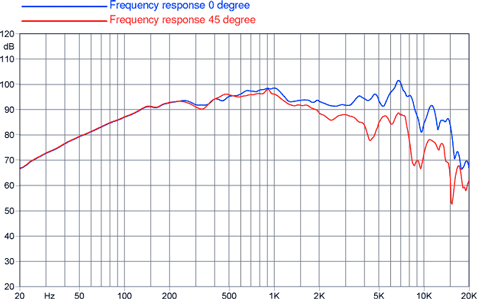

Frequency Response

Free Air Impedance Curve

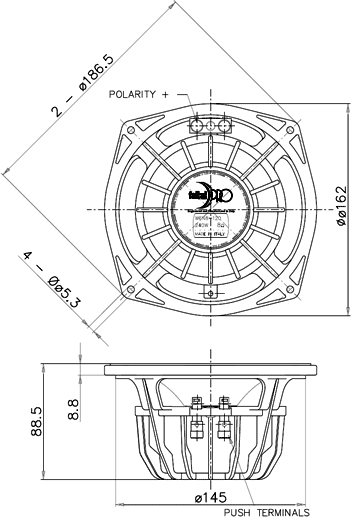

Mounting Dimensions
