• THE FAITAL PRO W10N8-350 10" SPEAKER CAN HANDLE 350 WATTS AES & 700 WATTS PROGRAM POWER
• EFFICIENCY IS 98DB SPL & HAS A 5.75MM XMAX FOR CLEAN STRONG SOUND
• 3" VOICE COIL, HIGH 24.7 BL FACTOR & A WIDE FREQUENCY RANGE FROM 60HZ TO 3.15KHZ
• WEIGHS ONLY 6.16 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY HIGH POWER PA SPEAKER SYSTEMS & BASS GUITAR CABINETS

THE W10N8-350 IS A NICE BASS GUITAR THAT IS 98DB SPL, HANDLES 350 WATTS AES W/ A 5.75MM XMAX!
	Item Price: $159.95
WOOFER MODEL	W10N8-350
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	8 ohms
AES Power Rating	350 Watts
Program Power	700 Watts
Frequency Response	60Hz - 3.15kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	15 mm
Air Gap Height	10.5 mm
X Damage (peak to peak)	12.5 mm
BL Factor	15.5 N/A
Mounting Information
Overall Diameter	10.28" / 261mm
Bolt Circle Diameter	9.69" / 246mm
Baffle Cutout Diameter-Front Mount	9.06" / 230mm
No. Of Mounting Holes	8
Overall Depth	4.54" / 115.3mm
Flange & gasket Thickness	0.48" / 12.2mm
Net Weight	6.16 lb. / 2.8 kg.
Shipping Weight	7.7 lb. / 3.5 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	60 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	0.71 mH
Mechanical Q (Qms)	6.18
Electrical Factor (Qes)	.26
Total Q (Qts)	.25
Comp. Equivelant Vol. (Vas)	1.1 ft3 / 31.5 Liters
Voice Coil Overhang (Xmax)	5.75 mm
Surface Area of Cone (Sd)m2	0.0319m2
Reference Efficiency	2.6%
Diaphragm Mass (Mms)	32.2 Grams
Mechanical Compliance (Cms)	.22 mm/N
Mechanical Resistance (Rms)	1.94 Kg/s

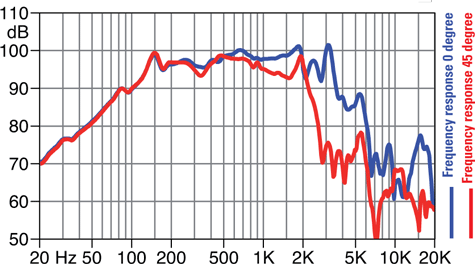

Frequency Response

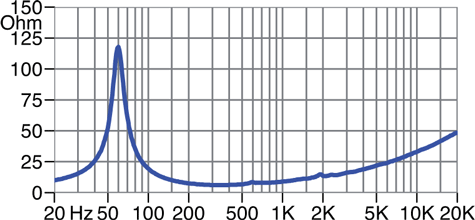

Free Air Impedance Curve

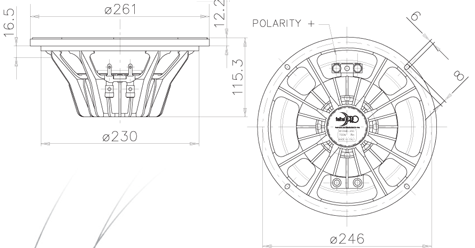

Mounting Dimensions
