FAITAL PRO W10N8-200 - 10" HIGH POWER SPEAKER
|
|
|
FAITAL PRO W10N8-200 - 10" HIGH POWER SPEAKER |
|
THE W10N8-200 IS A NICE BASS GUITAR THAT IS 97DB SPL, HANDLES 200 WATTS AES W/ A 4.92MM XMAX! |
|
|
|
W10N4-200 - 4 Ohm Version NO LONGER AVAILABLE Item Price: $99.95 |
|
W10N8-200 - 8 Ohm Version NO LONGER AVAILABLE Item Price: $99.95 |
|
| WOOFER MODEL | W10N8-200 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4 or 8 ohms |
|
AES
Power Rating |
200 Watts |
| Program Power | 400 Watts |
| Frequency Response | 60Hz - 5kHz |
|
Sensitivity
(1W/1m) |
97dB SPL |
| Voice Coil Diameter | 2.5" / 65mm |
| Voice Coil Length | 12.5 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 12.5 mm |
| BL Factor | 13.8 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.54" / 115.3mm |
| Flange & gasket Thickness | 0.48" / 12.2mm |
| Net Weight | 4.62 lb. / 2.1 kg. |
| Shipping Weight | 6.16 lb. / 2.8 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 60 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 0.56 mH |
| Mechanical Q (Qms) | 6.21 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .35 |
| Comp. Equivelant Vol. (Vas) | 1.04 ft3 /29.5 Liters |
| Voice Coil Overhang (Xmax) | 4.92 mm |
| Surface Area of Cone (Sd)m2 | 0.0319m2 |
| Reference Efficiency | 1.7% |
| Diaphragm Mass (Mms) | 34.4 Grams |
| Mechanical Compliance (Cms) | .20 mm/N |
| Mechanical Resistance (Rms) | 2.09 Kg/s |
|

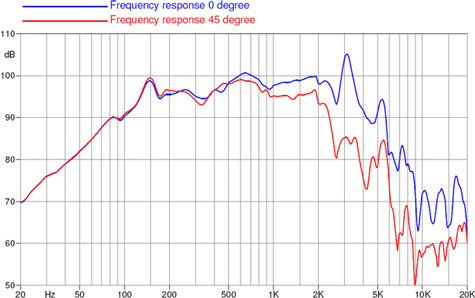

Frequency Response |
|
|
|
|

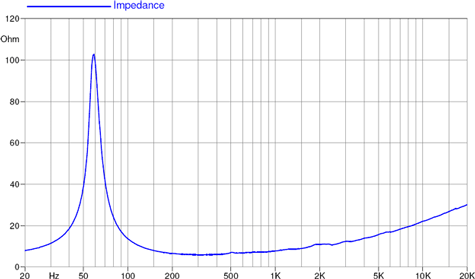

| Free Air Impedance Curve | |
 |
|
|

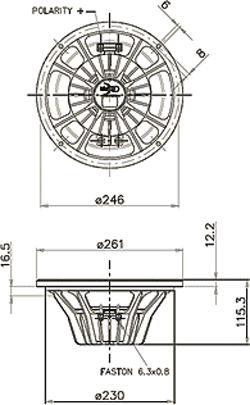

Mounting Dimensions |
|
|
|
|
