• THE NEW FAITAL PRO W18N8-1000 18" SPEAKER CAN HANDLE 1,000 WATTS AES & 2,000 WATTS PROGRAM POWER
• FEATURES A HIGH EFFICIENCY OF 99DB SPL & A LIGHTWEIGHT 13.4 LB. NEODYMIUM MAGNET
• HIGH 9.5MM XMAX FOR A STRONG BASS & FREQUENCY RANGE FROM 35HZ TO 1.6KHZ
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR HIGH POWER FOLDED HORN SPEAKER CABINETS

DESIGNED TO WORK WELL IN FOLDED SPEAKER CABINETS &  HANDLES A MASSIVE 2,000 WATTS!
	Item Price: $384.95
WOOFER MODEL	W18N8-1000
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	8 ohms
AES Power Rating	1,000 Watts
Program Power	2,000 Watts
Frequency Response	35Hz - 1.6kHz
Sensitivity (1W/1m)	99dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	23 mm
Air Gap Height	12 mm
X Damage (peak to peak)	17.5 mm
BL Factor	27.6 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.61" / 422mm
No. Of Mounting Holes	8
Overall Depth	7.95" / 202mm
Flange & gasket Thickness	0.55" / 13.9mm
Net Weight	13.4 lb. / 6.1 kg.
Shipping Weight	16.3 lb. / 7.4 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	35 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	1.6 mH
Mechanical Q (Qms)	10.6
Electrical Factor (Qes)	.28
Total Q (Qts)	.27
Comp. Equivelant Vol. (Vas)	7.48 ft3 / 211.83 Liters
Voice Coil Overhang (Xmax)	9.5 mm
Surface Area of Cone (Sd)m2	0.1136m2
Reference Efficiency	3.17%
Diaphragm Mass (Mms)	178.7 Grams
Mechanical Compliance (Cms)	.012 mm/N
Mechanical Resistance (Rms)	3.7 Kg/s

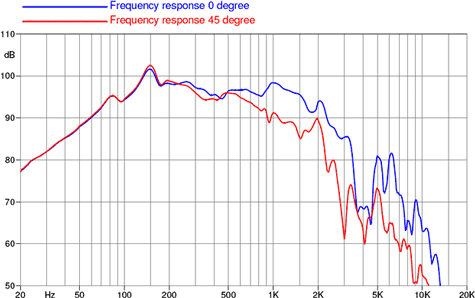

Frequency Response

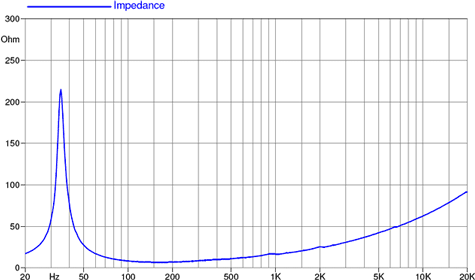

Free Air Impedance Curve

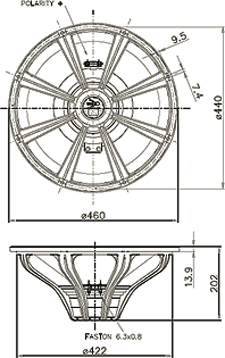

Mounting Dimensions
