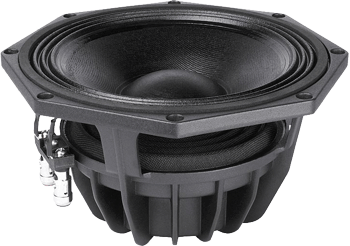

FAITAL PRO 8PR200 - 8" MID-BASS SPEAKER
|
|
|
FAITAL PRO 8PR200 - 8" MID-BASS SPEAKER |
|
GREAT FOR ALL MID-BASS APPLICATIONS THAT REQUIRE A SMOOTH NATURAL SOUND! |
|
|
|
8 Ohm Version
Item Price: $214.95 |
|
16 Ohm Version
Item Price: $214.95 |
|
| WOOFER MODEL | 8PR200 |
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8 or 16 ohms |
|
AES
Power Rating |
200 Watts |
| Program Power | 400 Watts |
| Frequency Response | 60Hz - 5.0kHz |
|
Sensitivity
(1W/1m) |
95dB SPL |
| Voice Coil Diameter | 2" / 52mm |
| Voice Coil Length | 19.3 mm |
| Air Gap Height | 9.0 mm |
| X Damage | 13.5 mm |
| BL Factor | 11.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 8.81"/8.18" / 223.8mm/207.9 |
| Bolt Circle Diameter | 8.27" / 210mm |
| Baffle Cutout Diameter-Front Mount | 7.24" / 184mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.59" / 116.7mm |
| Flange & gasket Thickness | 0.42" / 10.7mm |
| Net Weight | 4.63 lb. / 2.1 kg. |
| Shipping Weight | 5.51 lb. / 2.5 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 58 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 0.55 mH |
| Mechanical Q (Qms) | 9.4 |
| Electrical Factor (Qes) | .38 |
| Total Q (Qts) | .36 |
| Comp. Equivelant Vol. (Vas) | 0.53 ft3 / 15.1 Liters |
| Voice Coil Overhang (Xmax) | 8.15 mm |
| Surface Area of Cone (Sd)m2 | 0.0199m2 |
| Reference Efficiency | 0.76% |
| Diaphragm Mass (Mms) | 27.2 Grams |
| Mechanical Compliance (Cms) | .28 mm/N |
| Mechanical Resistance (Rms) | 1.04 Kg/s |
|

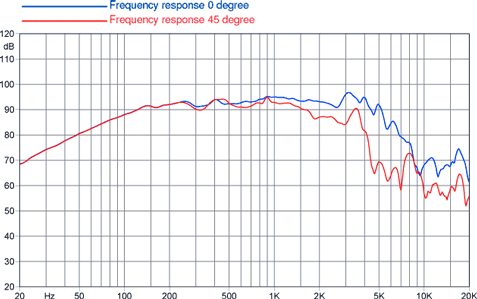

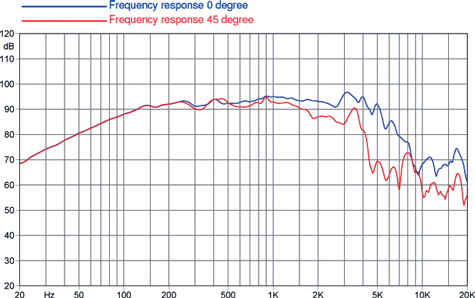

Frequency Response |
|
|
|
|

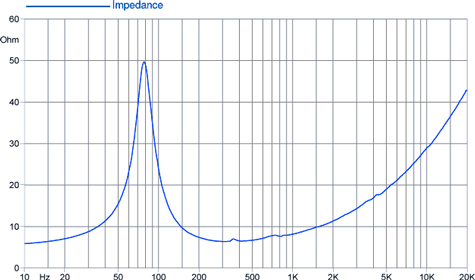

| Free Air Impedance Curve | |
 |
|
|

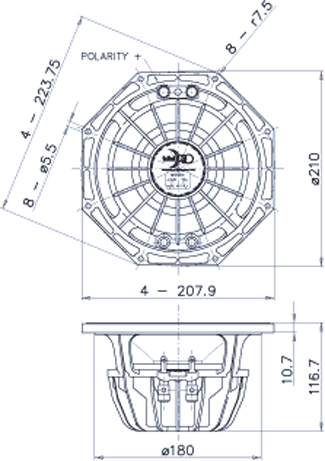

Mounting Dimensions |
|
|
|
|
