• THE FAITAL PRO 6PR110 6.5" MIDRANGE SPEAKER CAN HANDLE 150 WATTS AES & 300 WATTS PROGRAM POWER
• LOW DISTORTION, WIDE FREQUENCY RANGE FROM 100HZ TO 6.0KHZ & IS 96DB SPL EFFICIENT
• SMOOTH MIDRANGE WITH A FLAT RESPONSE ACROSS ITS' FREQUENCY RANGE
• WEIGHS 4.85LBS.
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MIDRANGE IN 2 OR 3-WAY PA SPEAKER SYSTEMS

THE 6PR110 HAS A SMOOTH SOUNDING DETAILED MIDRANGE THAT HAS LOW DISTORTION W/ 300 WATTS POWER HANDLING!
	Item Price: $130.95
WOOFER MODEL	6PR110
Specifications
Nominal Basket Diameter	6.5" / 160mm
Impedance	8 ohms
AES Power Rating	150 Watts
Program Power	300 Watts
Frequency Response	100Hz - 6.0kHz
Sensitivity (1W/1m)	96dB SPL
Voice Coil Diameter	1.6" / 37mm
Voice Coil Length	7.5 mm
Air Gap Height	6.0 mm
X Damage	11.6 mm
BL Factor	8.5 N/A
Mounting Information
Overall Diameter	7.34"/6.37" / 186.5mm/162
Bolt Circle Diameter	6.77" / 172mm
Baffle Cutout Diameter-Front Mount	5.78" / 147mm
No. Of Mounting Holes	4
Overall Depth	3.05" / 77.5mm
Flange & gasket Thickness	0.37" / 9.5mm
Net Weight	4.85 lb. / 2.2 kg.
Shipping Weight	5.29 lb. / 2.4 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Suspension	Half Roll
Former Material	Kapton
Voice Coil	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	100 Hz
Impedance (Re)	6 ohms
Coil Inductance (Le)	0.22 mH
Mechanical Q (Qms)	4.2
Electrical Factor (Qes)	.6
Total Q (Qts)	.5
Comp. Equivelant Vol. (Vas)	0.18 ft3 / 5.0 Liters
Voice Coil Overhang (Xmax)	2.75 mm
Surface Area of Cone (Sd)m2	0.0129m2
Reference Efficiency	.8%
Diaphragm Mass (Mms)	11.2 Grams
Mechanical Compliance (Cms)	.2 mm/N
Mechanical Resistance (Rms)	1.8 Kg/s
EBP	167

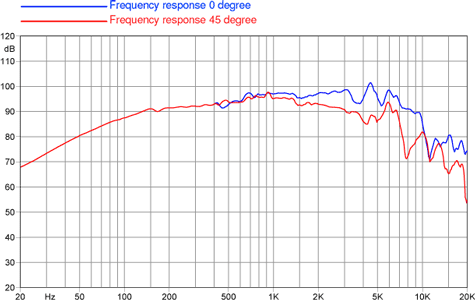

Frequency Response

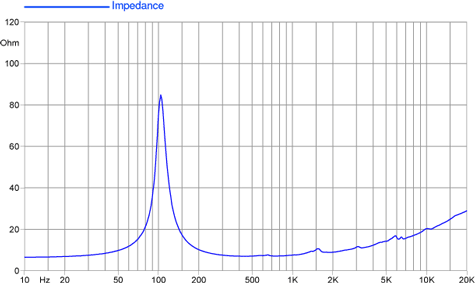

Free Air Impedance Curve

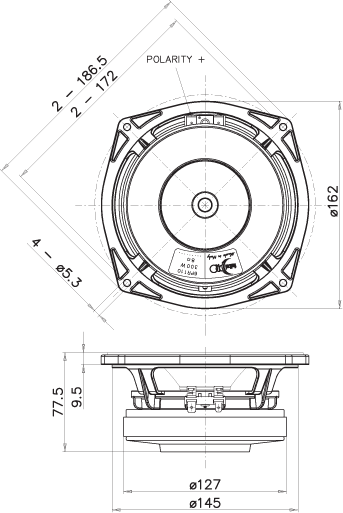

Mounting Dimensions
